| Numéro de l'article: | 290001 |
Description

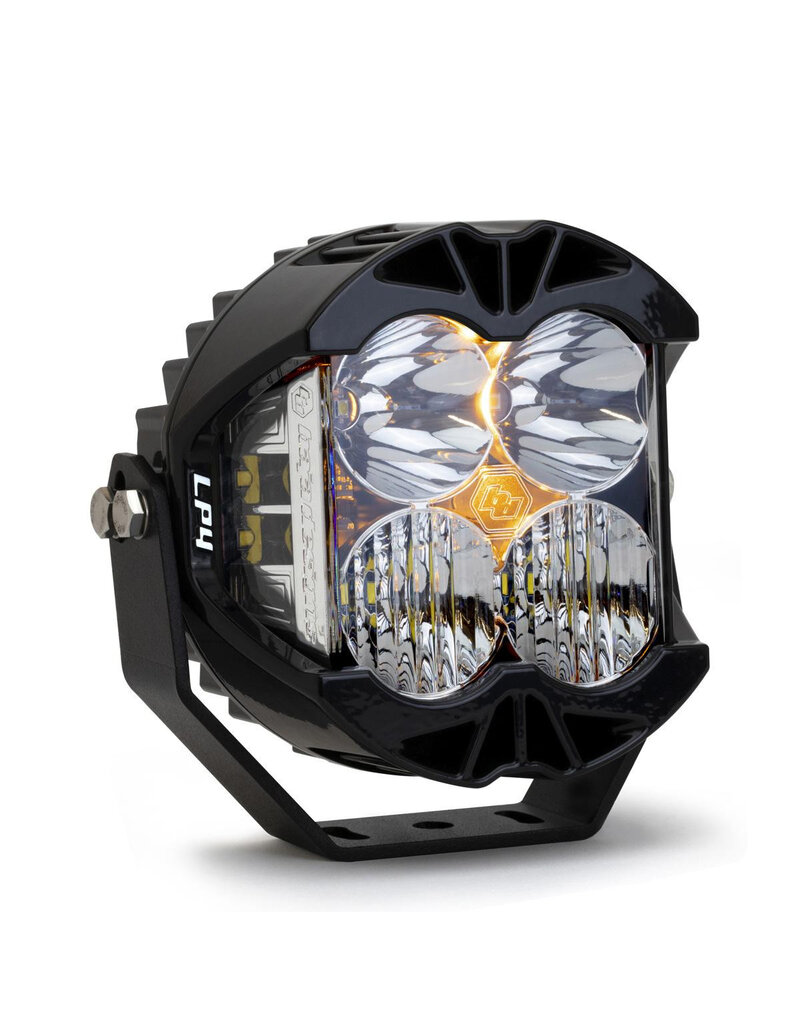

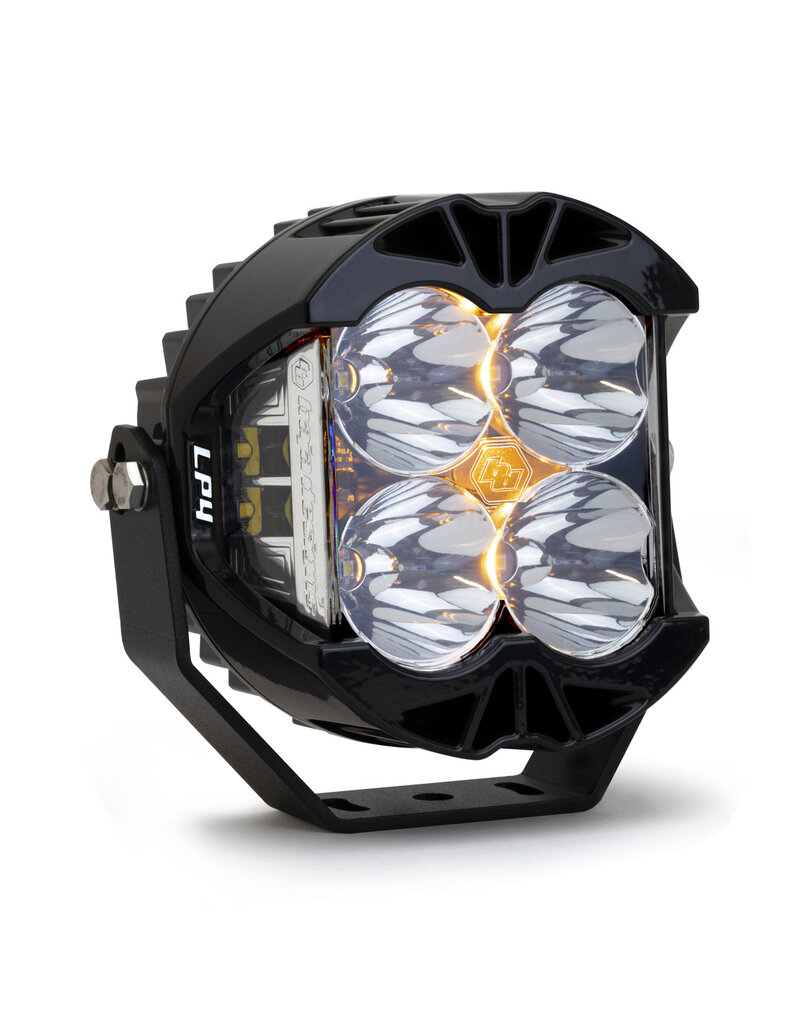

Le LP4 est le plus petit modèle de la gamme LP et utilise la même architecture que ses grands frères. Le LP4 offre une puissance totale de 8 857 lumens bruts, dont 6 885 lumens bruts projetés vers l'avant et 1 972 lumens bruts dédiés à l'éclairage périphérique grâce à notre technologie brevetée Integrated Peripheral Technology (IPT) qui diffuse la lumière à 200 degrés et éclaire les zones 1, 2 et 3 tout en atteignant la zone 4.
Pour que votre éclairage fonctionne au mieux, le LP4 intègre notre technologie exclusive Direct Ducted Cooling (DDC) qui permet à l'air de circuler à travers l'avant du boîtier et au-dessus des dissipateurs thermiques arrière, améliorant ainsi considérablement la capacité de refroidissement et les performances.

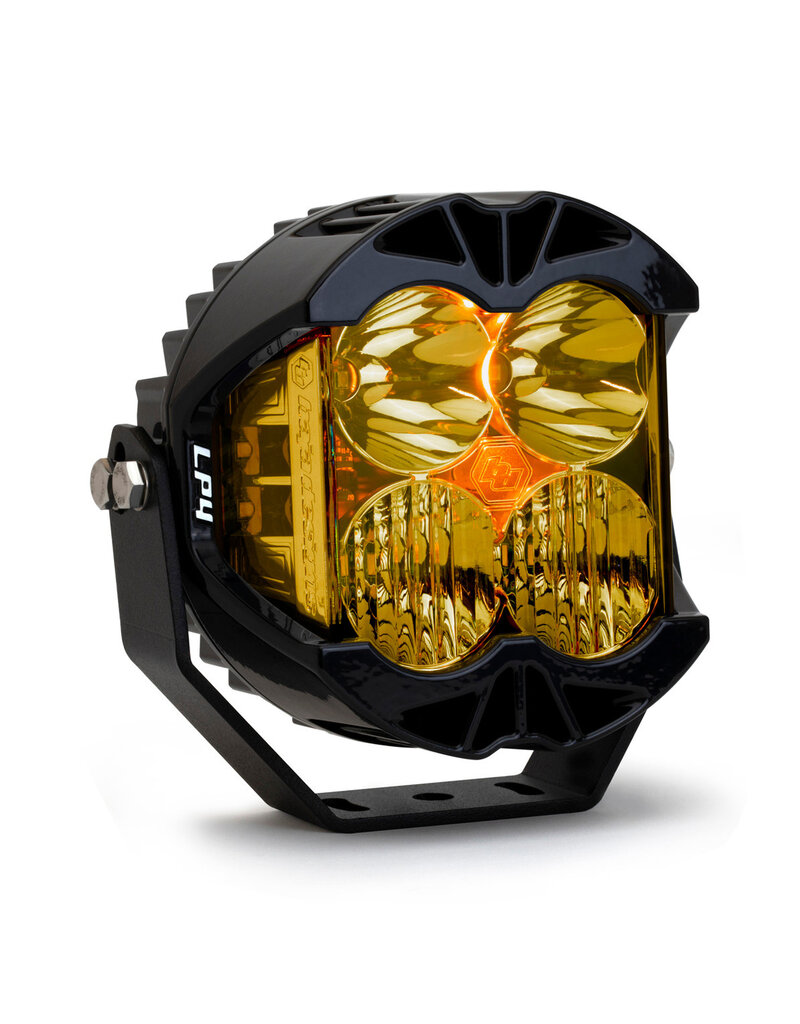

L'ajout d'options de rétroéclairage rouge, bleu ou vert à notre couleur ambre d'origine sur le LP4 Pro permet aux passionnés de personnaliser leur véhicule pour les salons, les séances photo ou tout autre endroit où ils souhaitent attirer l'attention.
REMARQUE : ce feu n'est pas livré avec un faisceau de câbles. Le faisceau de câbles applicable pour ce feu est le 640175.
Avertissement : les feux Baja Designs de la série LP avec rétroéclairage rouge, bleu ou vert sont destinés UNIQUEMENT À UN USAGE D'EXPOSITION. Ne les utilisez jamais sur la voie publique afin d'éviter toute confusion avec les véhicules des forces de l'ordre ou d'urgence. Le propriétaire/conducteur est responsable du respect de toutes les lois et réglementations en matière d'équipement routier.
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Depth (cm) | 8,1 |
| Height (cm) | 12,95 |
| Length (cm) | 12,95 |
| Weight (kg) | 1,27 |
With so much power, a cooling system was an integral part of making the LP series perform at the highest lever. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

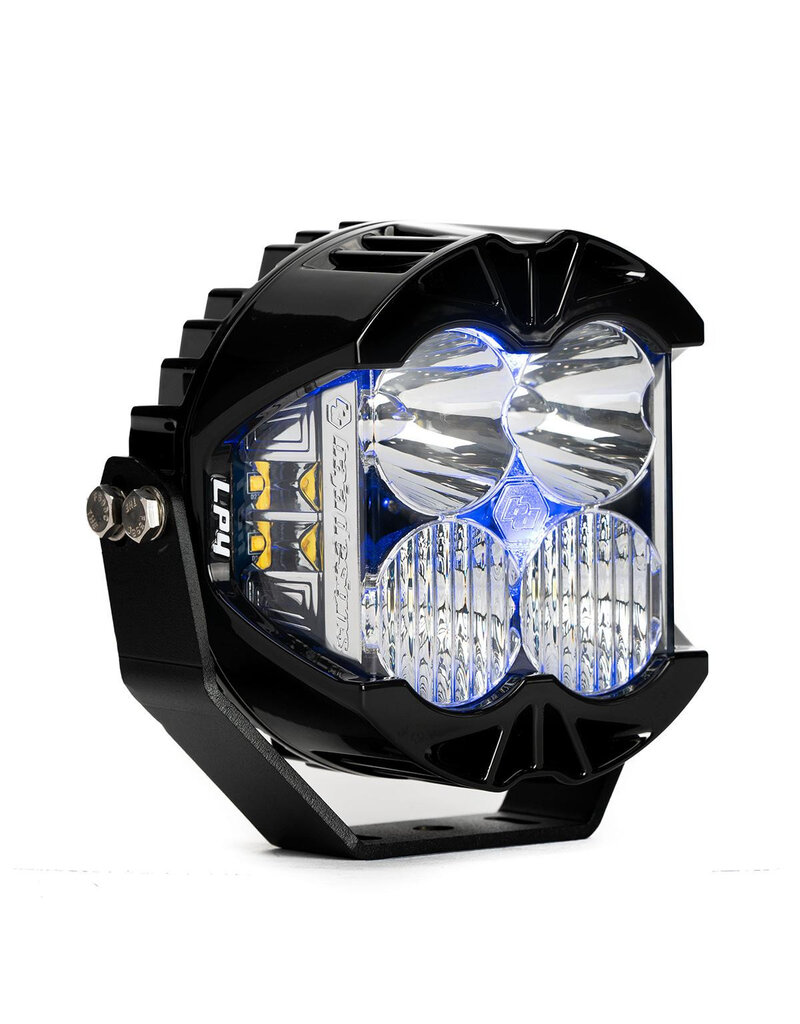

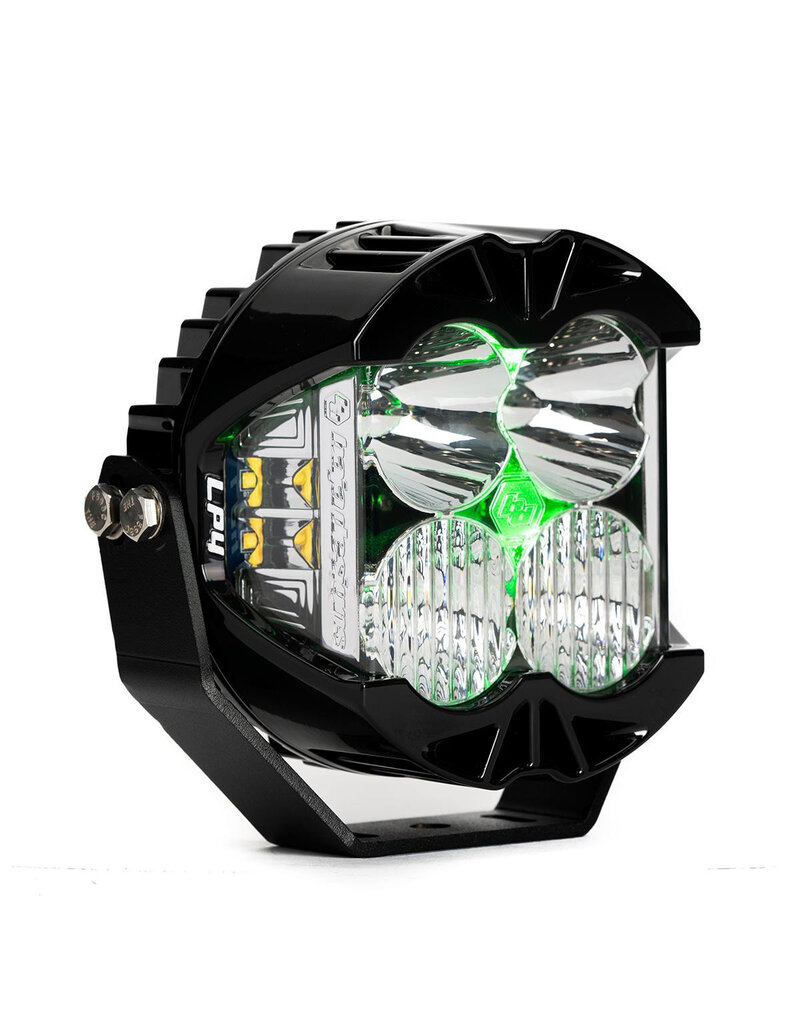

Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
At Baja Designs, we design our lighting solutions with one goal: to win races. When we achieve this goal, we know we’ve created a product we’re proud to introduce to the general market. The LP Series combines the research and development from all our past and current Baja Designs lights, resulting in the most powerful all-in-one off-road light ever engineered. Watch the inside look: The LP Series video for a glimpse into the technology, features, and performance of the Scientists of Lighting’s flagship powerhouse
