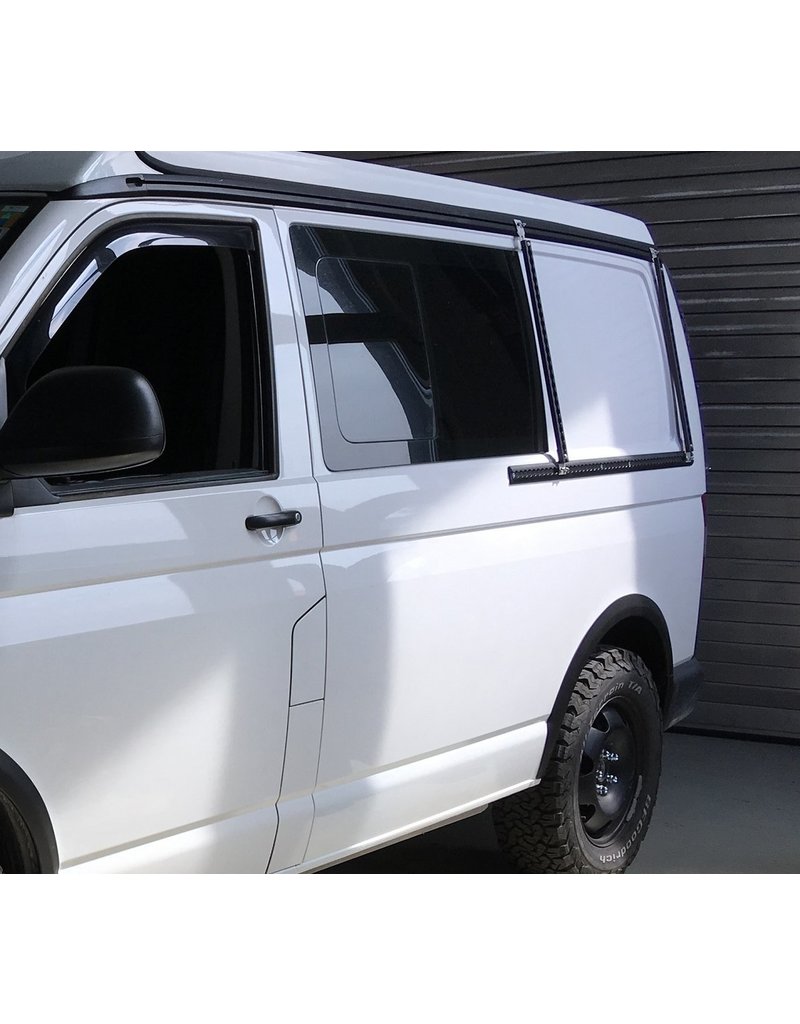

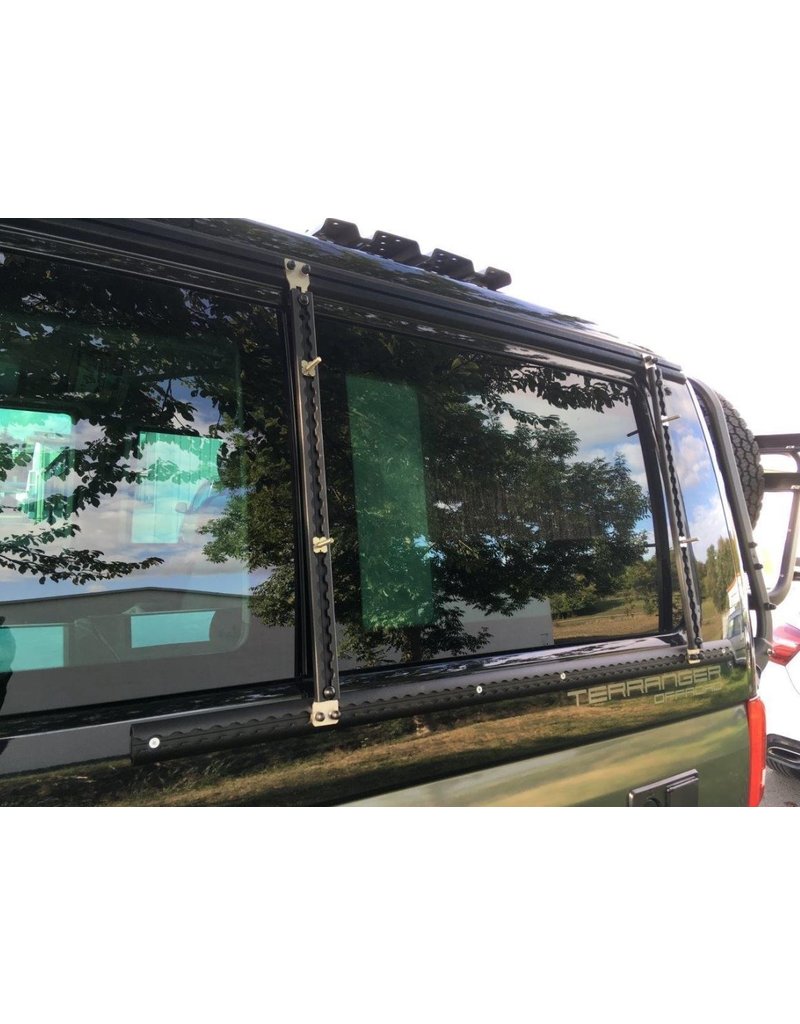

TERRANGER Lateral fastening system for the VW T5-T6.1 at the rear left side, consisting of airline rails for holding sandboards, bags, tools and much more

Article number:

TA-T6-614-40-Cali-Magnet

TERRANGER Lateral fastening system for the VW T5-T6.1 at the rear left side, consisting of airline rails for holding sandboards, bags, tools and much more.

Now available in different versions: for upper attachment to a square California or Spacecamper rail or to a round Reimo or Brandrup rail profile.

You can also choose whether the vertical lashing rails are attached at the bottom to a horizontal lashing rail or with two strong magnets each without a horizontal lashing rail.



Versions :
V1 : for VW California / Spacecamper limited

• V1-1 : quickly mounted with two strong magnets
• V1-2 : heavy duty version with lower horizontal lashing rail

V2 : for VW with Brandrup Toprail/Reimo Multirail

• V2-1 : quickly mounted with two strong magnets
• V2-2 : heavy duty version with lower horizontal lashing rail

Upper attachment to the following piping rail:

• rail (square inner profile) of the VW T5-T6.1 California* or SpaceCamper limited
• Toprail from Brandrup (round inner profile) on the T5-T6.1 Transporter (e.g.: SpaceCamper light/Classic)
• Multirail from Reimo (round interior profile) on the T5-T6.1 Transporter

Lower attachment optionally with:

• Magnets - quick installation and removal, without drilling or gluing. Load capacity up to 30 kg
• Airline lashing rail, mounted horizontally on the vehicle (glued and screwed). Maximum load 40 kg

Scope of delivery:
- 2x attachment point for screwing to the piping rail above the side window (rear left), made of stainless steel
- 2x airline lashing rail (angular), approx. 630 mm long, arranged vertically to hold the transported goods, made of aluminum, black powder-coated, fine structure
- with HD variant : 1x airline lashing rail (semicircular), 1160 mm long, horizontal arrangement, for screwing and gluing to the panel under the side window, made of aluminum, black powder-coated, fine structure
- with magnet variant: 4x neodymium magnets and highly transparent paint protection film.

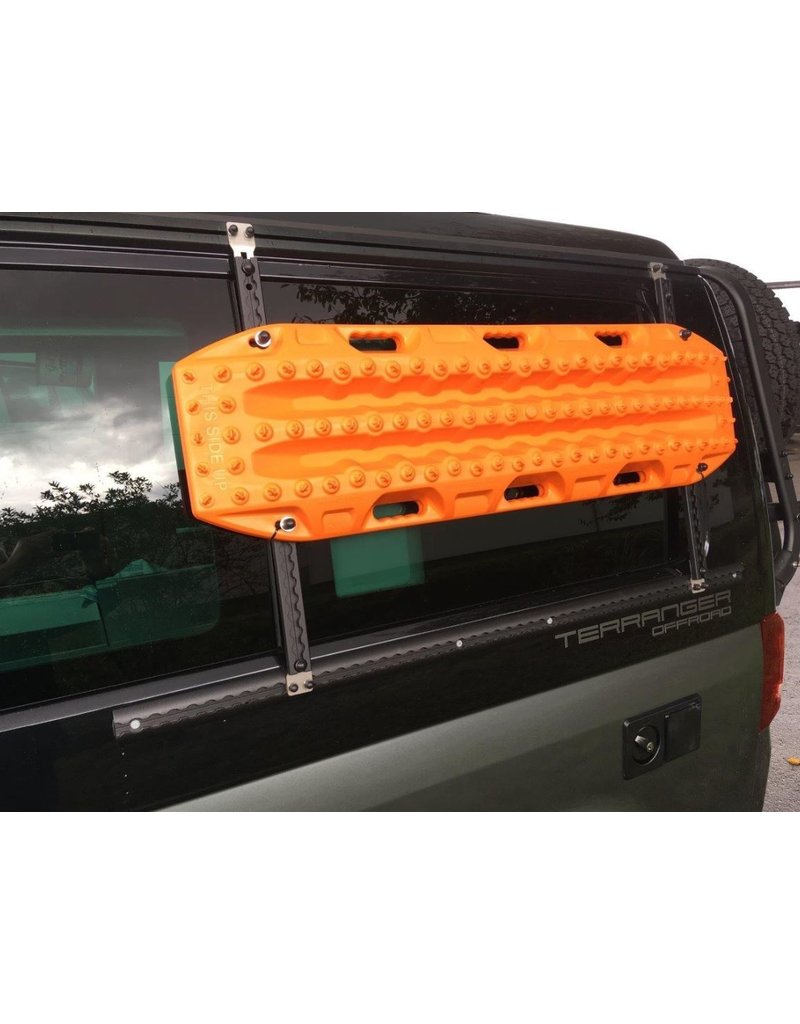

The acessories , recovery boards shown, including their brackets, are not included in the scope of delivery of the lashing rail system.
Only suitable for vehicles without a sliding door on the left-hand side (only one sliding door on the right-hand side).
*The original rail of the Californias from Volkswagen has part no. 7H7 875 311 9P7. This can also be fitted (glued) to the Transporter, Caravelle or Multivan. You can obtain these from your Volkswagen Commercial Vehicles dealer.
We can procure the Reimo rail for you. Please ask us.
