30 mm body lift kit (front and rear) for Ford Transit / Tourneo Custom V710 from 2024 and VW Transporter 2025+, by TERRANGER

Article number:

TA-F1-101-FW30/30

30 mm body lift kit (front and rear) for Ford Transit / Tourneo Custom V710 from 2024 and VW T7 new Transporter 2025+, by TERRANGER

Note on the identical T7 (new Transporter): Validity subject to change: we know that the parts fit. That is why T7 is already in the title. However, due to the later launch, this is not yet included in the certification report and installation in the T7 has not yet been officially approved by the manufacturer. This approval will be granted shortly...then this text will disappear!

30mm lift kit suitable for all Ford Transit / Tourneo Custom V710 with diesel engine and front- or all-wheel drive, from MY 2024 and VW Transporter 2025+

Increases ground clearance under the front axle and rear axle differential by 30 mm.

Ideal for heavy vehicles, such as campervans or loaded commercial vehicles.

The vehicle's payload should be at least 200 kg in the rear area of the loading/passenger compartment.

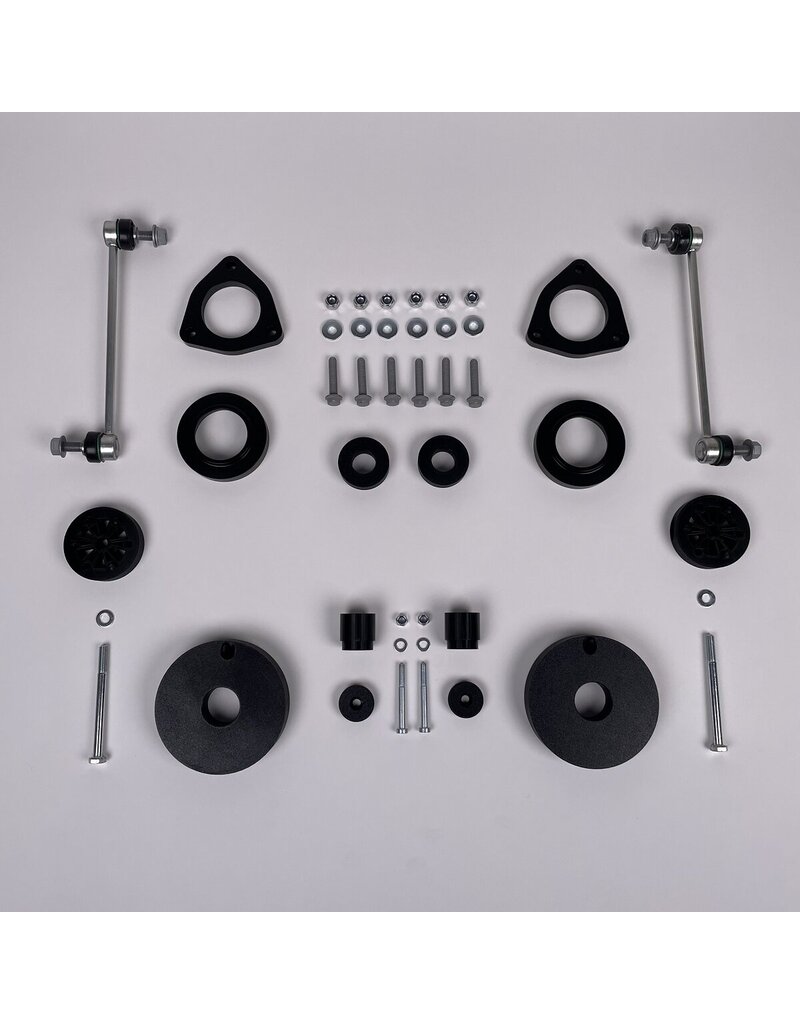

The set includes:

• 2x spacer plates, above strut mounts for the front axle struts, made of high-strength aluminum, anodized surface
• 2x spacer sleeve, under strut mount for the front axle spring struts, made of high-strength aluminum, anodized surface
• 2x spring travel limiters for the front axle dampers, made of plastic
• 2x coupling rod for front axle stabilizer
• 2x spacer for the rear axle coil springs, made of glass fiber-reinforced plastic
• 2x extension centering of the rubber pad for the rear axle spring, made of high-strength aluminum, anodized surface
• 2x spring travel limiters for the rear axle semi-trailing arm, made of plastic

homologation sheet is supplied with the kit

Minimum payload on the rear axle: 200 kg

In combination with this lift kit, larger AT tires can be installed.
