SPRINTER 2WD NCV3 /W906 STRIKER 2.0" SUSPENSION LIFT SYSTEM - complete kit

€2.399,00
Article number: 7009-KIT-2500

VAN COMPASS™ STRIKER 2WD SPRINTER VAN 2.0" SUSPENSION LIFT SYSTEM (NCV3 /W906 2WD), complete kit for front and rear

Details

The bolt-on Striker Sprinter 2.0” suspension lift system provides clearance for larger tires and offers additional ground clearance under the van. Additional traction from larger tires and ground clearance helps to avoid obstacles on the trail to your remote campsite.

The Striker system retains the stock vehicle suspension geometry, payload rating and ride quality. All of the suspension lift system components are constructed of high quality materials in the USA and are powder coated for durability and corrosion resistance.

*** Some Dual Rear wheel Sprinters have factory rear lift blocks installed, the rear kit will not be compatible ***

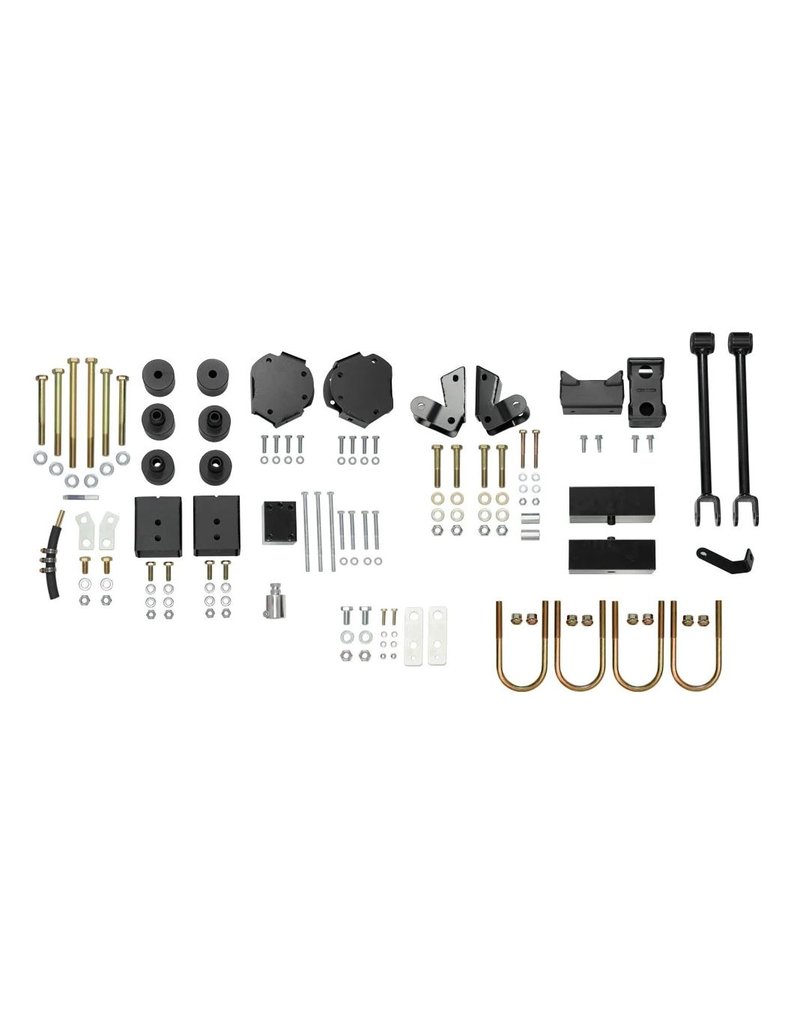

INCLUDED COMPONENTS:
  • Front 2.0” strut spacer - 1/4” hot rolled steel
  • Front 2.0” subframe drop spacers - 4140 heat treated chromoly
  • Motor mount 2.0” lift spacer - 3/16" hot rolled steel
  • Transmission 2.0" lift spacer - 3/16" hot rolled steel
  • Steering shaft extension - 4140 heat treated chromoly
  • Low pressure power steering hose extension
  • Front brake line relocation brackets
  • Rear sway bar links - 11/16" x .120 DOM and 3/16" hot rolled steel
  • Rear lower shock mounts - 1/8" hot rolled steel
  • Rear bump stop drop brackets - 1/8" hot rolled steel
  • Rear wind assist extension bracket - 1/8" hot rolled steel
  • All necessary hardware

Professional Installation in our workshop is possible. Any mechanic shop that installs truck/jeep lift kits can also perform installation.
