SunRack M2.5 Solar module 185WP – 1250x902mm

SunRack M2.5 Solar module 185WP – 1250x902mm

185W solar panel with mounting bracket

Want to be even more independent with solar power? Rolling Space has combined the advantages of a permanently installed solar module with those of a mobile solar bag in their SunRack solar module. You can now park in the shade and still reap the maximum power yield, because Rolling Space solar modules are removable (Sun-Rack M2, M2.5 & M3) and, thanks to the latest generation of solar cells, deliver up to 25% more energy than conventional solar modules.

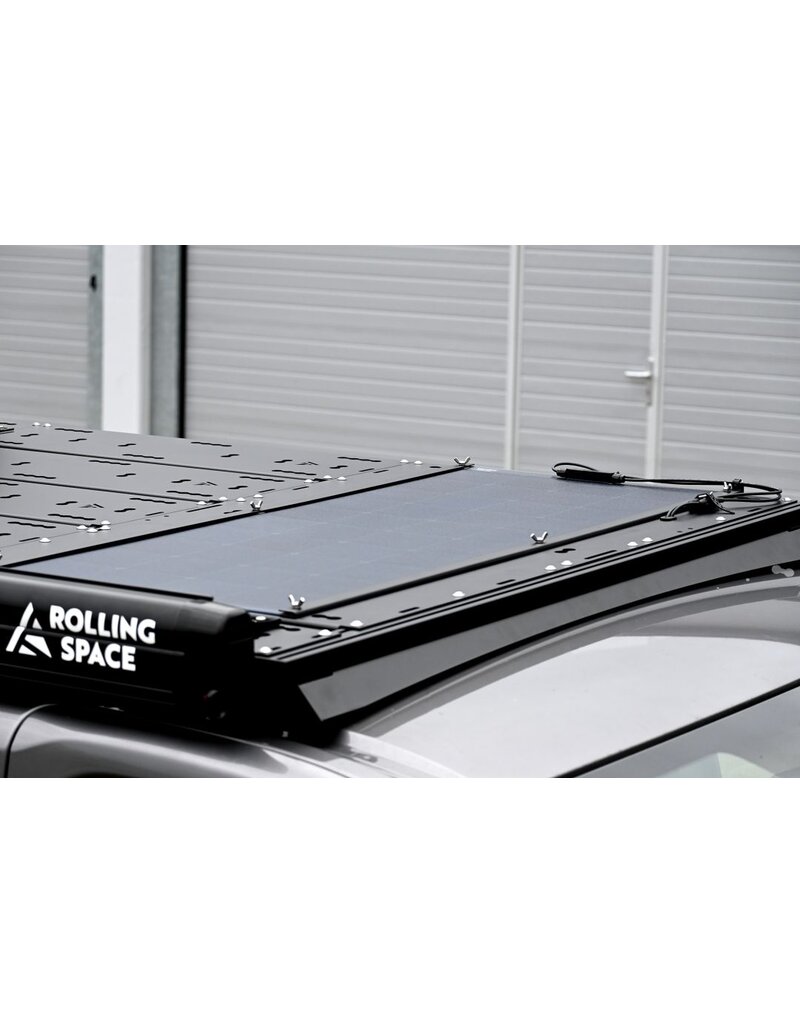

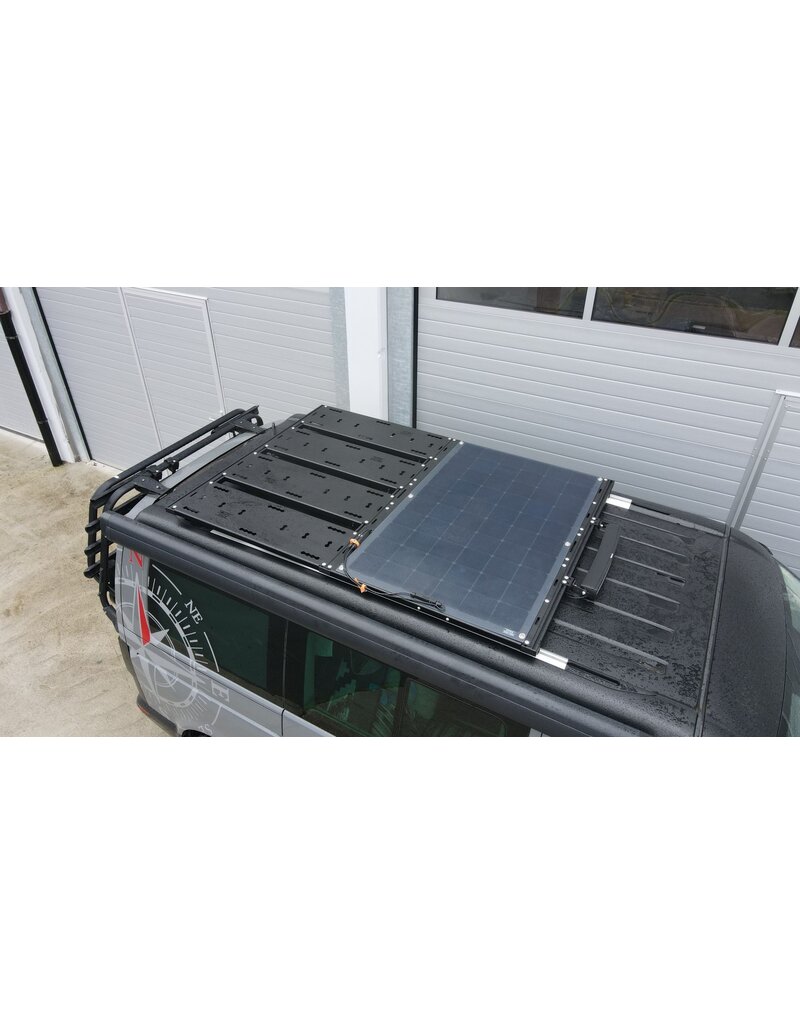

The best part? You can still take long items such as your SUP with you and don't have to worry about stability, because Rolling Space solar modules are completely walkable. And that's not all – your SunRack also integrates perfectly into the roof rack visually. The SunRack M1 replaces a standard roof rack module. The SunRack M2, M2.5 & M3 solar modules replace a standard module row and are specially designed to fit their SpaceRack system. This means you can simply swap your standard module for a SunRack.

What are the advantages of the SunRack module compared to conventional modules or sticking flexible solar modules directly onto the roof?

• Park in the shade and still generate electricity – simply remove the module, connect the extension cable and place it in the sun.
• Remove it when you need the space to transport cargo.
• The option to continue attaching accessories to the side of the SunRack
• Extremely easy to mount on the SpaceRack roof rack system. Plug & play – no tinkering required
• Good heat dissipation thanks to rear ventilation of the modules, resulting in high efficiency.
• Walkable, so no loss of roof rack space
• No wind noise
• Attractive appearance

The SunRack is available in a width of 1250 mm and replaces the 652 mm standard modules. Examples of where it can be used include the VW T4, T5/T6/T6.1 California, and Caddy.

Technical data

• Power (Pmax): 185 Wp
• SunRack dimensions: 1250 x 902 mm
• Slar module dimensions: 1195 × 825 × 2.8 mm
• Coating: ETFE, textured
• Max. power voltage (Vmpp): 30.0 V
• Max. power current (Impp): 6.16 A
• Open circuit voltage (Voc): 37.0 V
• Short circuit current (Isc): 6.53 A
• Flexibility: up to 35°
• Connection box: IP65
• Connector: MC3
• Eyelets: 18 x 10 mm

Safety notice

Please note: The solar module generates electrical voltage when exposed to sunlight. Improper handling can result in electric shock or damage to the electronics. Electrical connections should therefore only be made by qualified personnel. Take care to avoid short circuits and only use suitable accessories.
