| Article number: |
TA-S2-30M-10-004 |

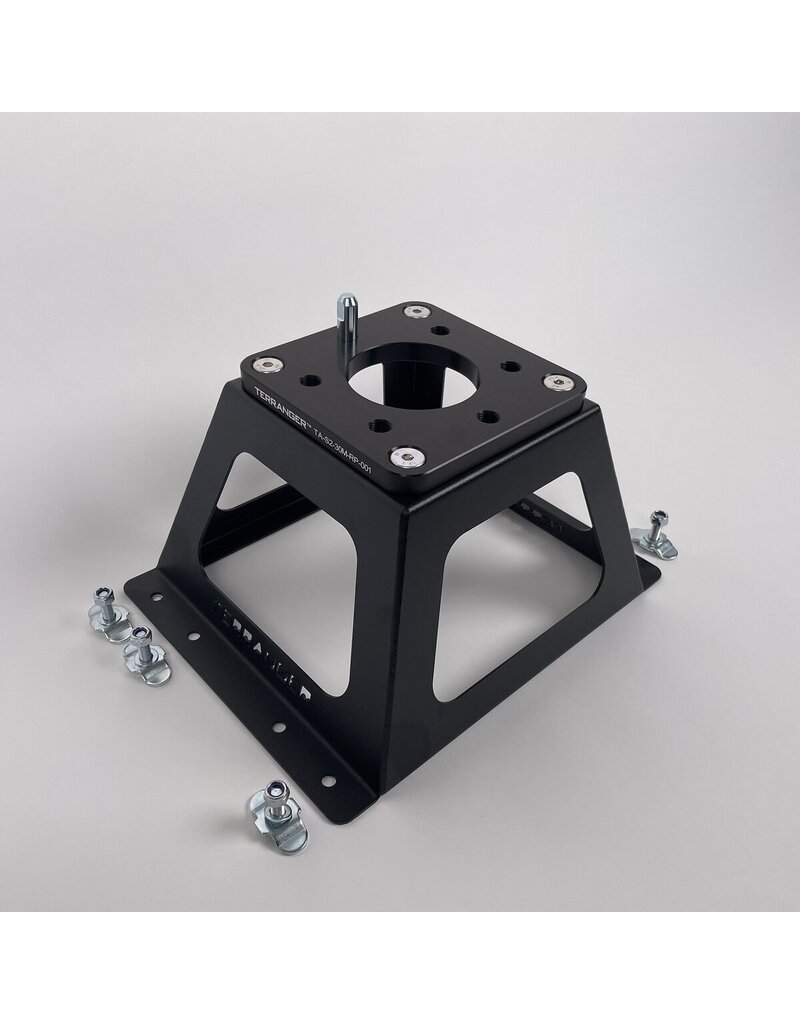

Spare wheel holder module for MB Sprinter 906/907 (6x130) by TERRANGER
Wheel holder module suitable for our rear carrier systems. Also suitable for larger off-road tires. By attaching the spare wheel to the tailgate, it does not need to be removed from under the vehicle in the event of a flat tire.
Can also be used universally, for example on two lashing rails with a center-to-center distance of 300 mm. The hole pattern of the lashing rails must be 25 mm.
Technical data:
- Wheel carrier material: Sheet steel, surface galvanized and powder-coated, black fine structure
- Adaptation plate material: Aluminum, surface black anodized
- Material: Fastening and standard parts: steel, surface galvanized
- Net weight: approx. 3.3 kg
Scope of delivery:
- 1x wheel carrier (sheet metal body in lightweight design as welded steel construction)
- 1x adapter plate for rim bolt pattern (milled part)
- 4x safety screw connection for adapter plate
- 1x mounting bolt / 4x wheel bolts (depending on vehicle/rim)
- 6x M8 mounting fittings for airline lashing rails
