| Article number: |
UNI-RRF-H55-BL |

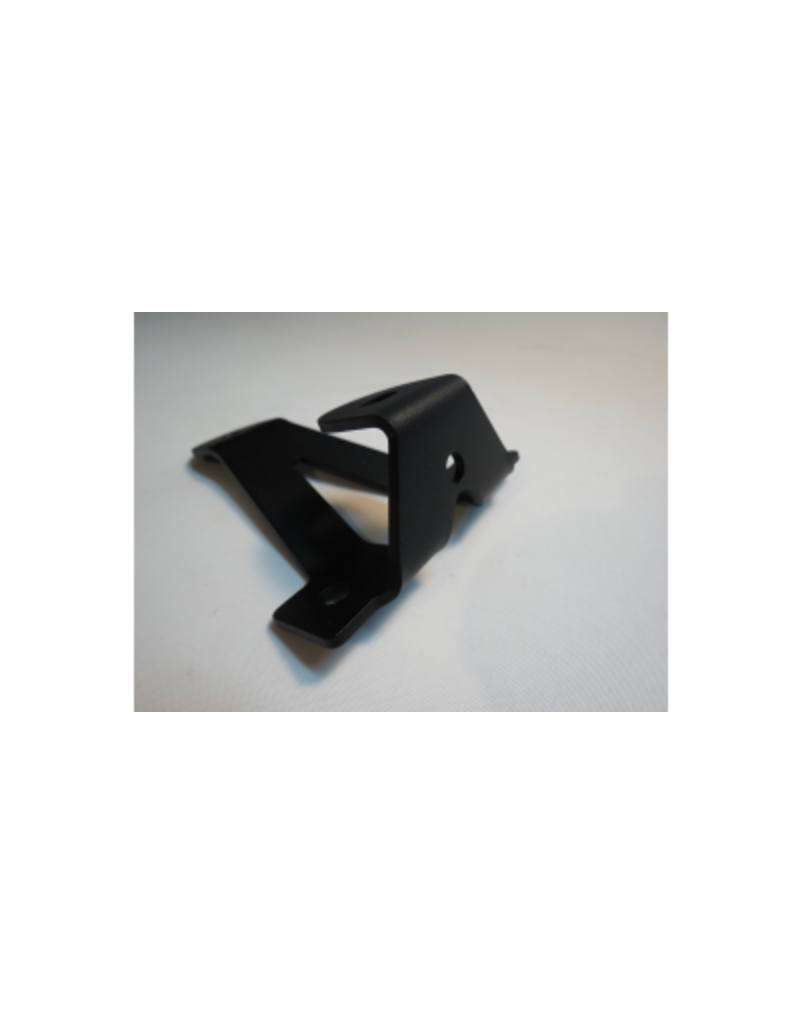

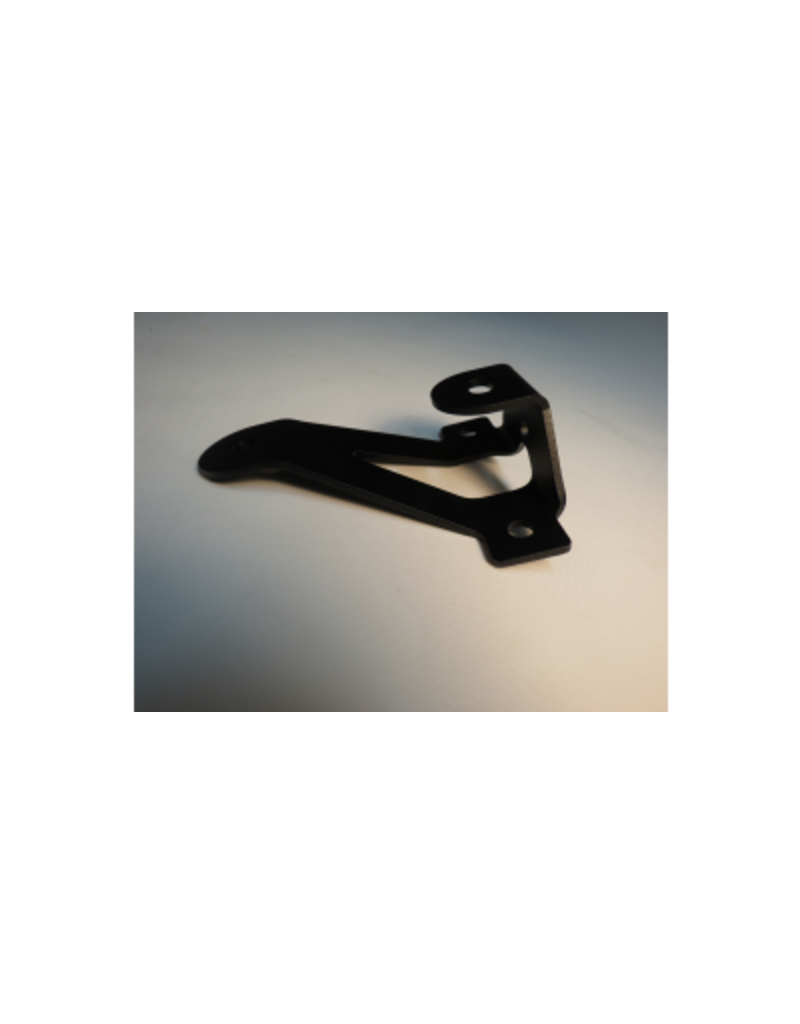

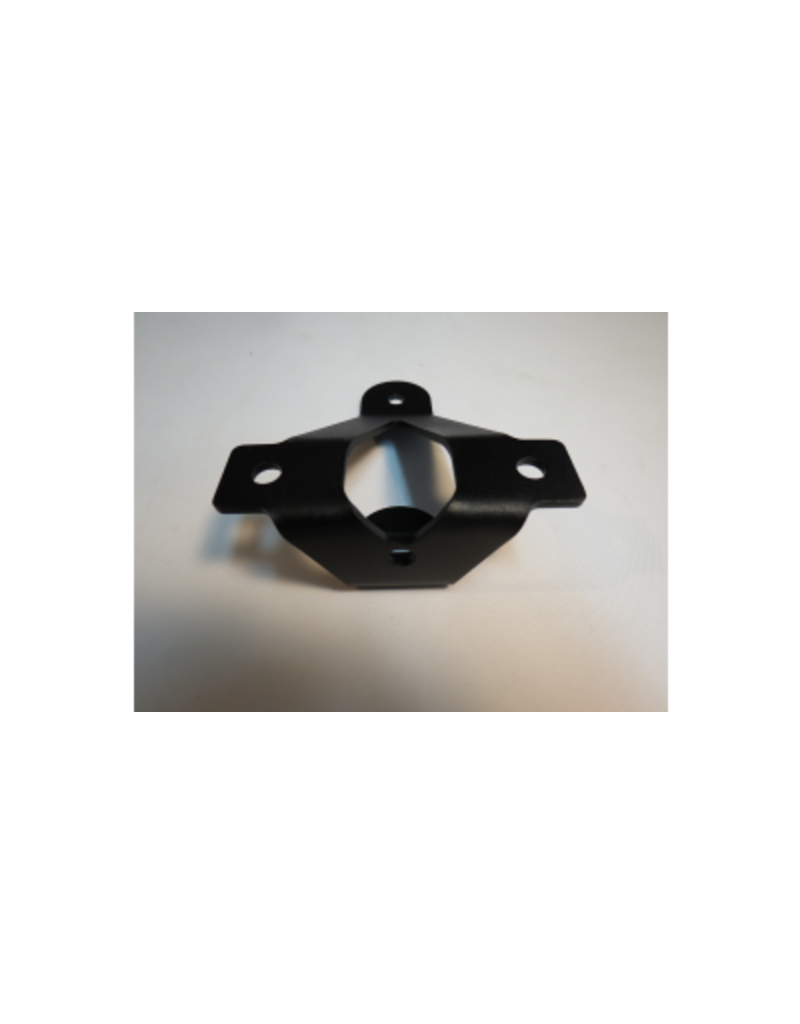

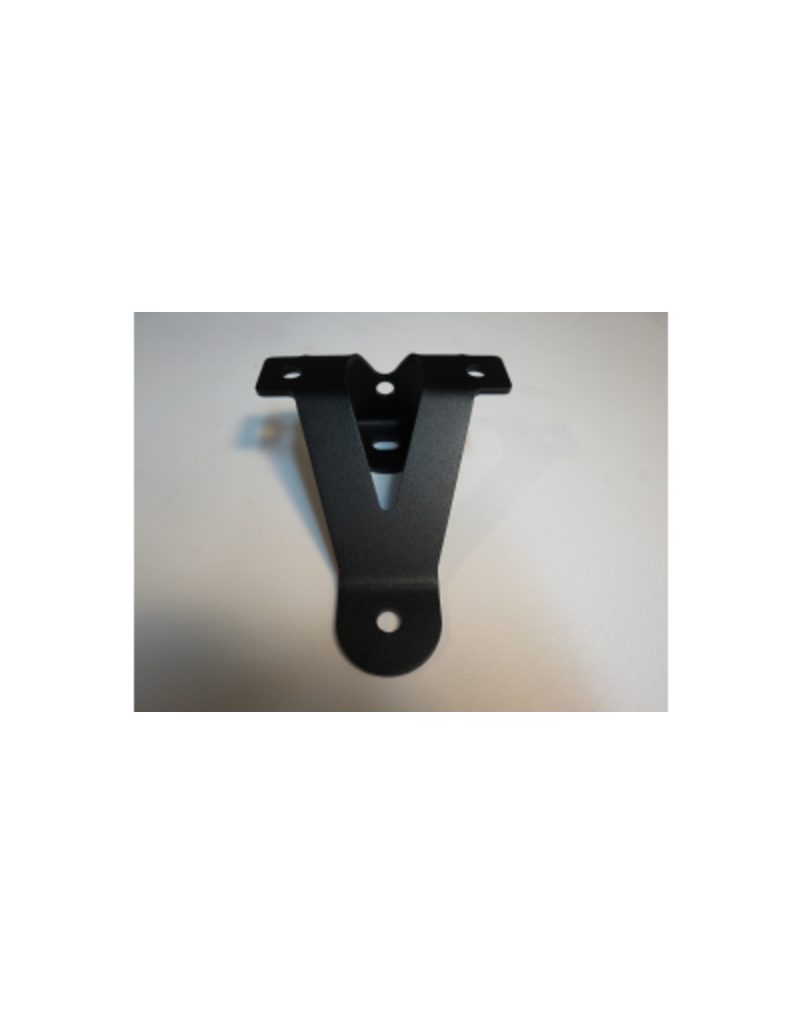

Roof rack foot H55, asymmetrical, black stainless steel
- Universal asymmetrical roof rack foot made from 3mm stainless steel
- Black powder-coated finish with a fine texture
- Height 55 mm
You are buying 1 foot, not a pair!
- Asymmetrical design for minimal lateral overhang
- Structurally rigid, resulting in a high load capacity of 80 kg per foot
- Highly resistant to lateral forces such as those encountered during off-road use; no bending stress
- Height 55 mm
- Lower drill holes aligned to lashing rail grid, 75 mm spacing
- Upper drill hole spacing 85 mm, slotted holes for alignment
- Projection beyond the lower row of drill holes approx. 18 mm (alternatively, symmetrical foot, see below)

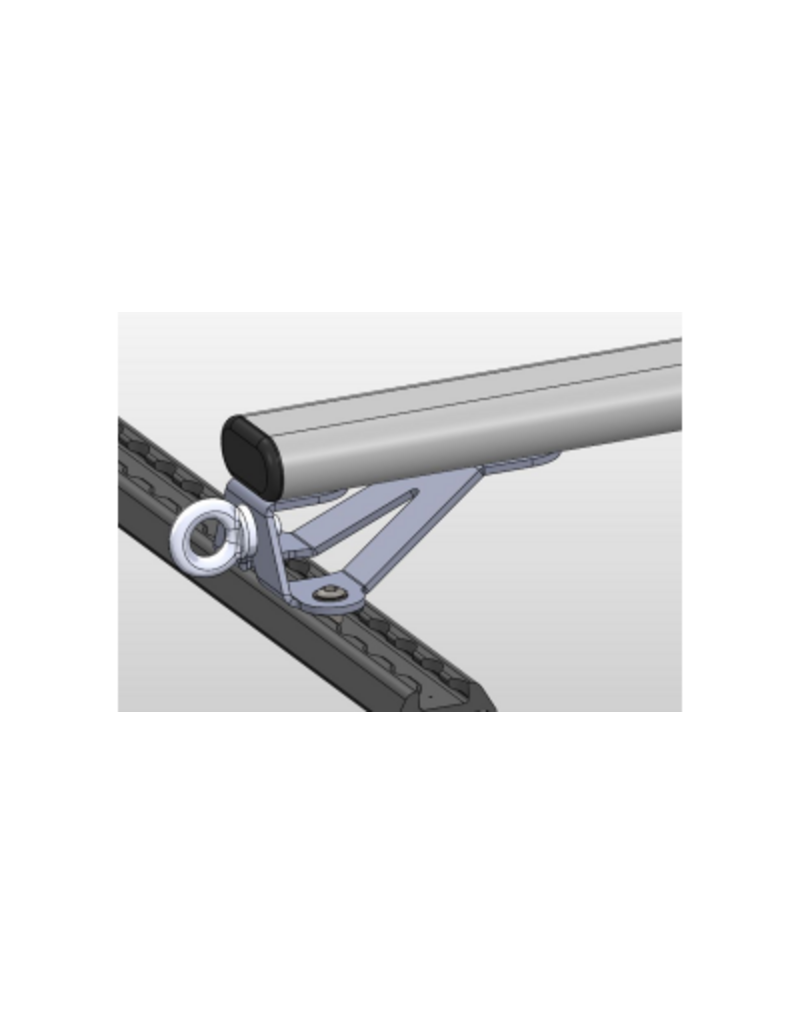

To mount on lashing rails, you will also need 2x M8 lashing rail nuts + clips and 2x M8x10 bolts
Safety note: sharp-edged metal parts; the product does not comply with standards for hazard-free fittings (edge radii are <2.5 mm). For use only in areas where no persons are at risk
