| Article number: |
UNI-RRF-H40-BL |

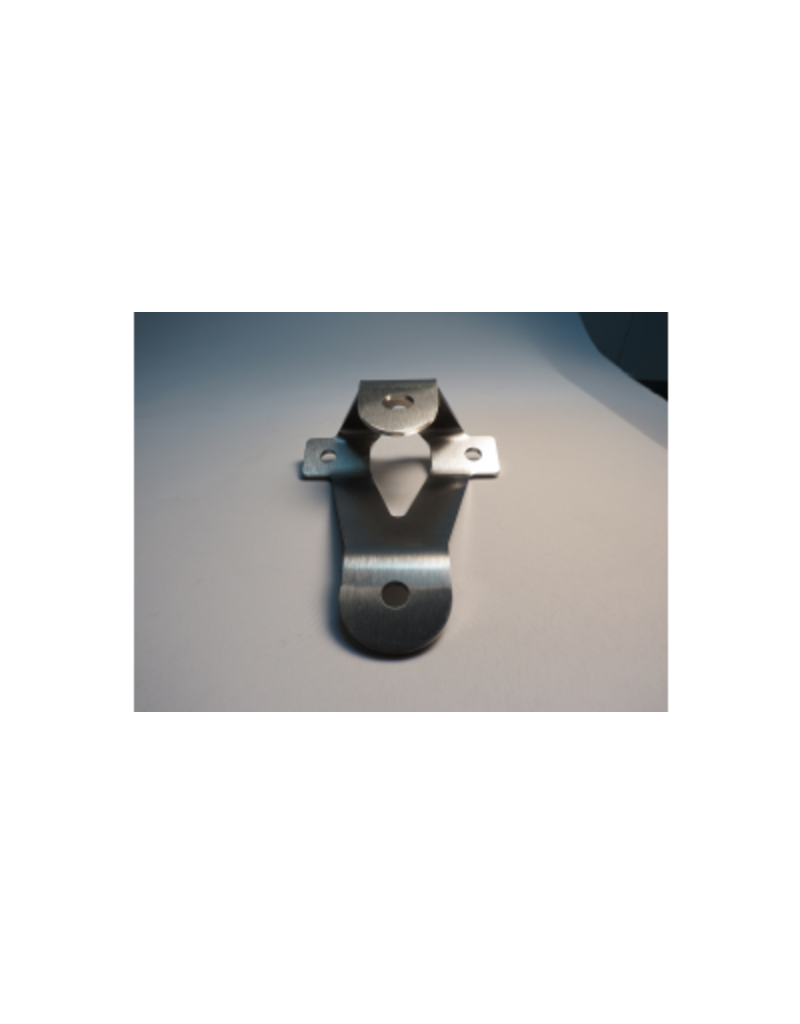

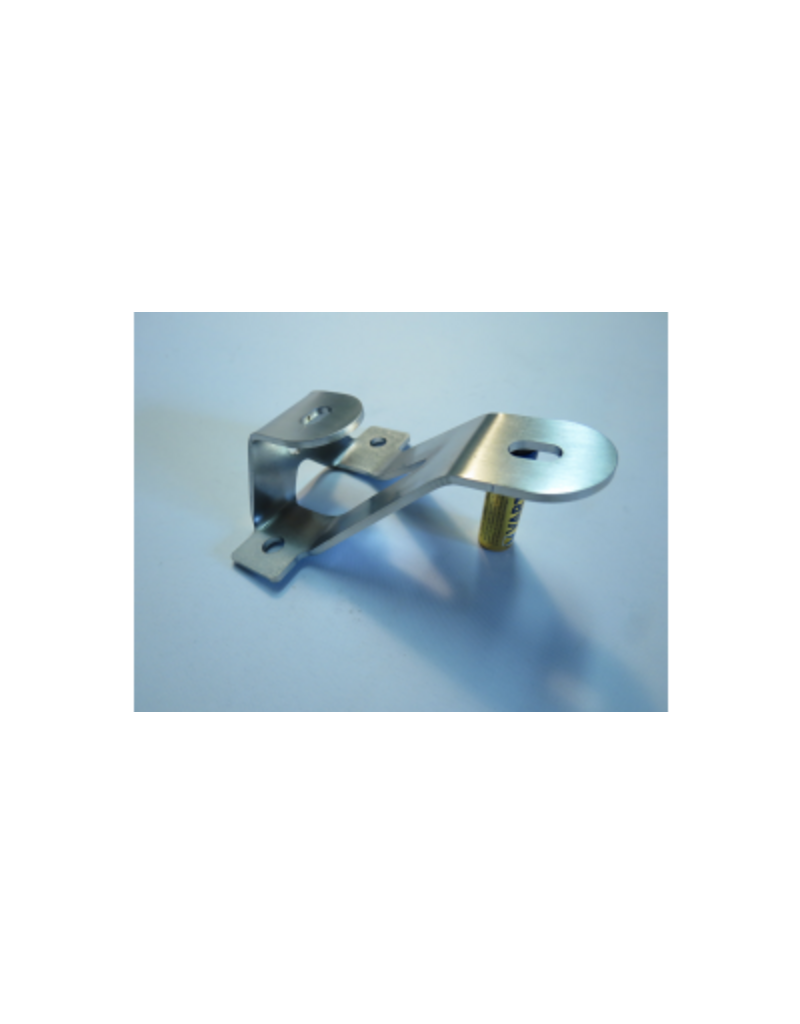

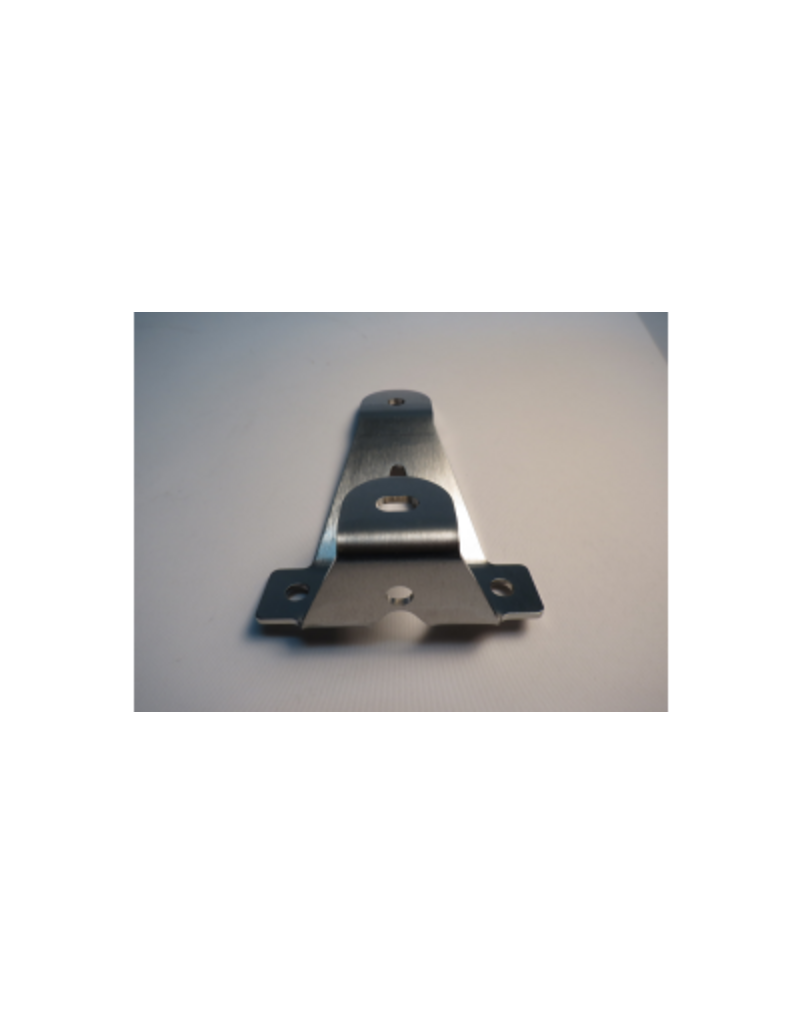

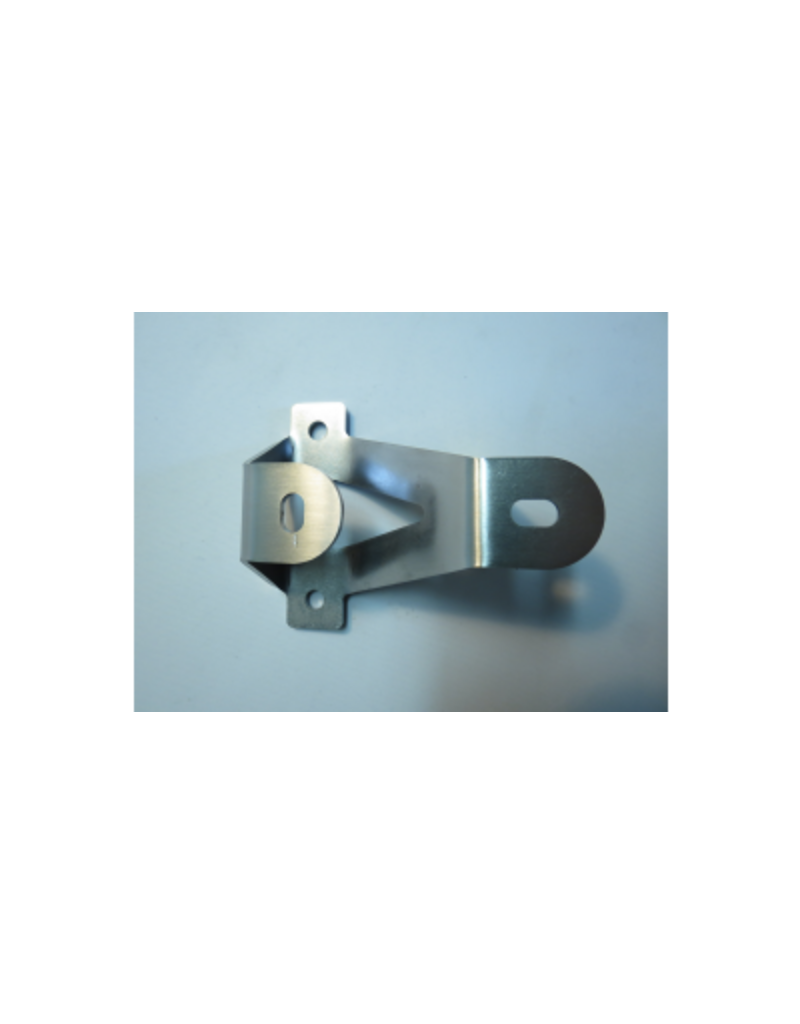

Roof rack foot H40, asymmetrical. black stainless steel
- Universal asymmetrical roof rack foot made from 3mm stainless steel
- Height 40mm
You are buying 1 foot, not a pair!
- Asymmetrical design for minimal lateral overhang
- Statically optimised, making it highly load-bearing
- Highly stable against lateral forces such as those encountered during off-road use; no bending stress
- Height 40 mm
- Lower drill holes aligned to lashing rail grid, 75 mm spacing
- Upper drill hole spacing 85 mm, slotted holes for alignment
Projection beyond the lower row of holes approx. 18 mm (alternatively, symmetrical foot, see below)

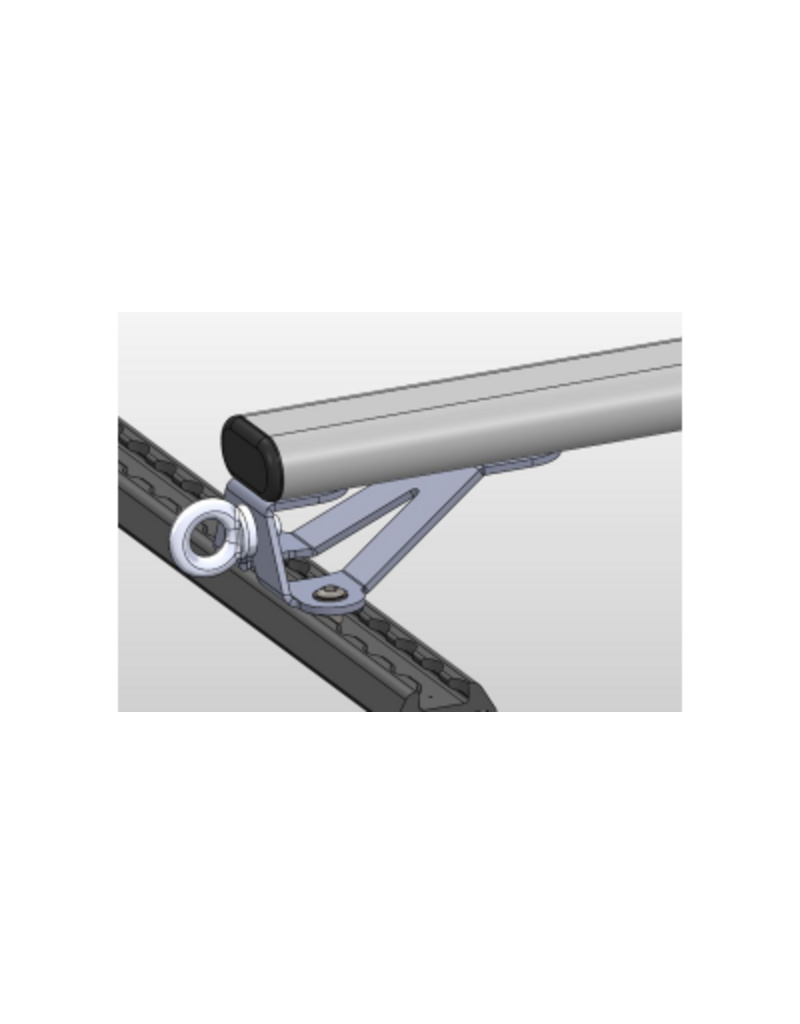

To secure to lashing rails, you will also need 2x M8 lashing rail nuts + clips and 2x M8x10 bolts
