| Article number: | SH-OM-5/8-RB |

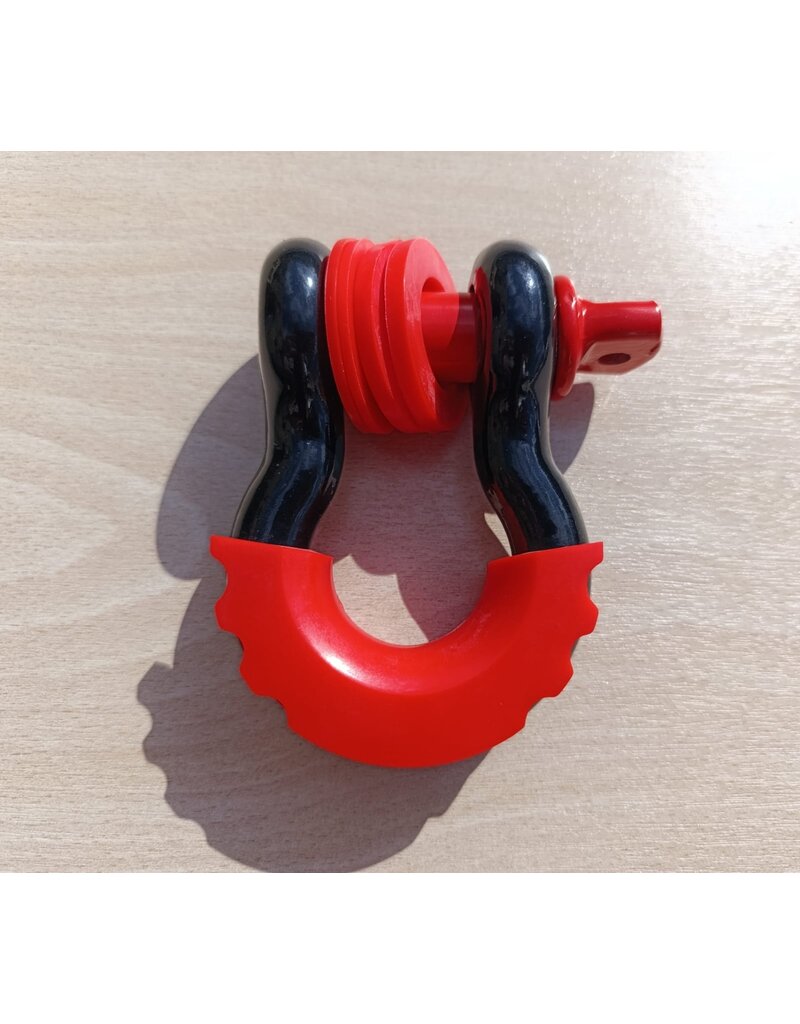

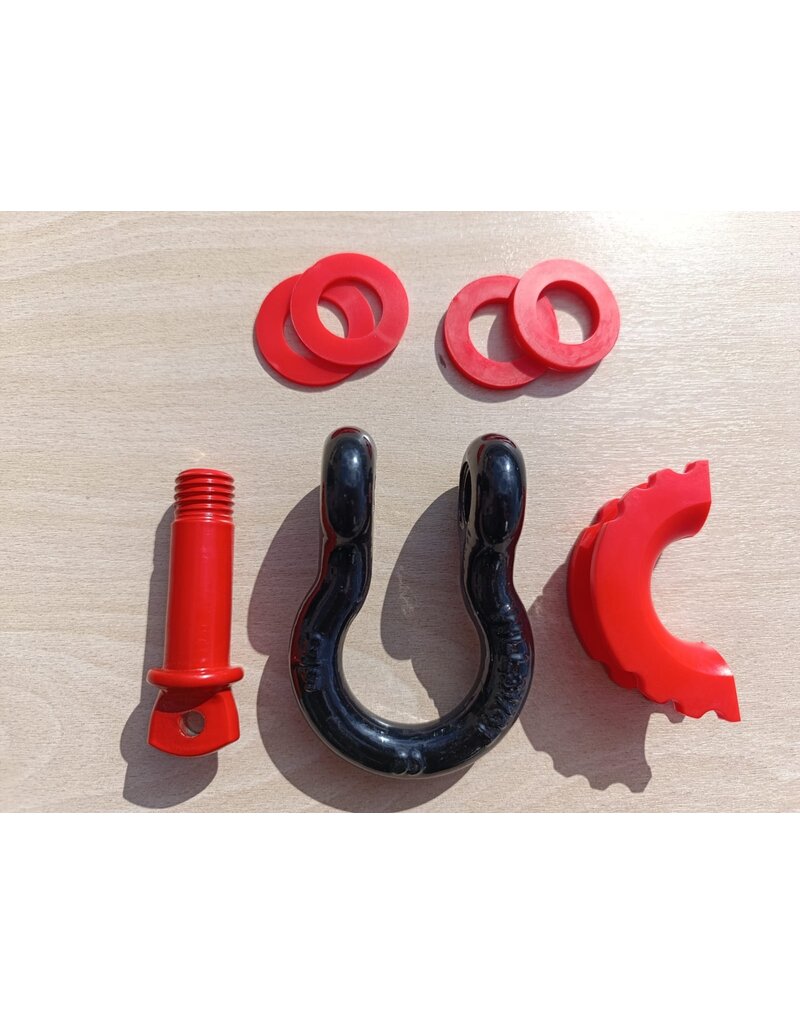

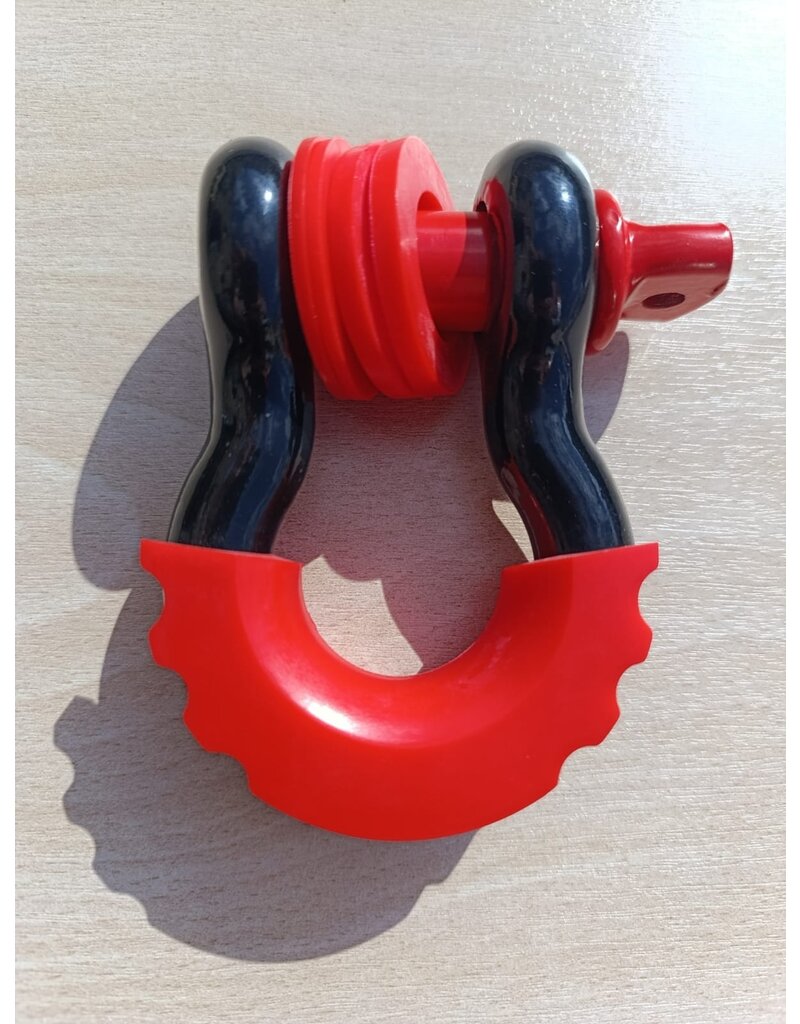

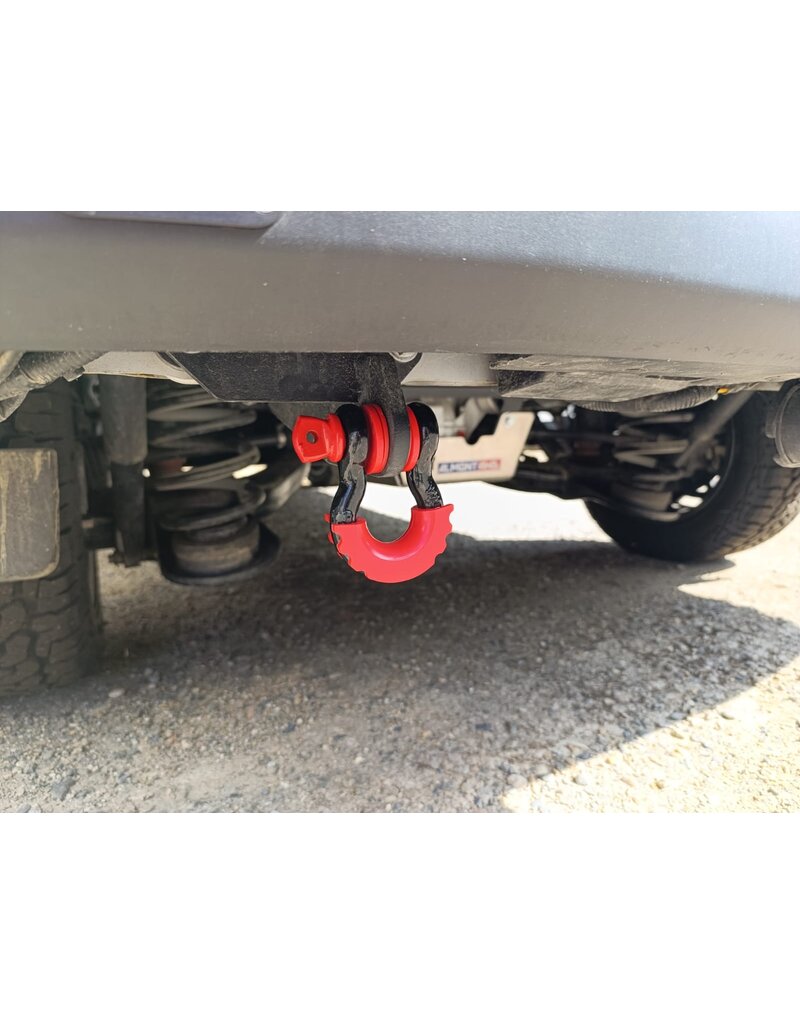

Solid omega shackle in stylish red and black.

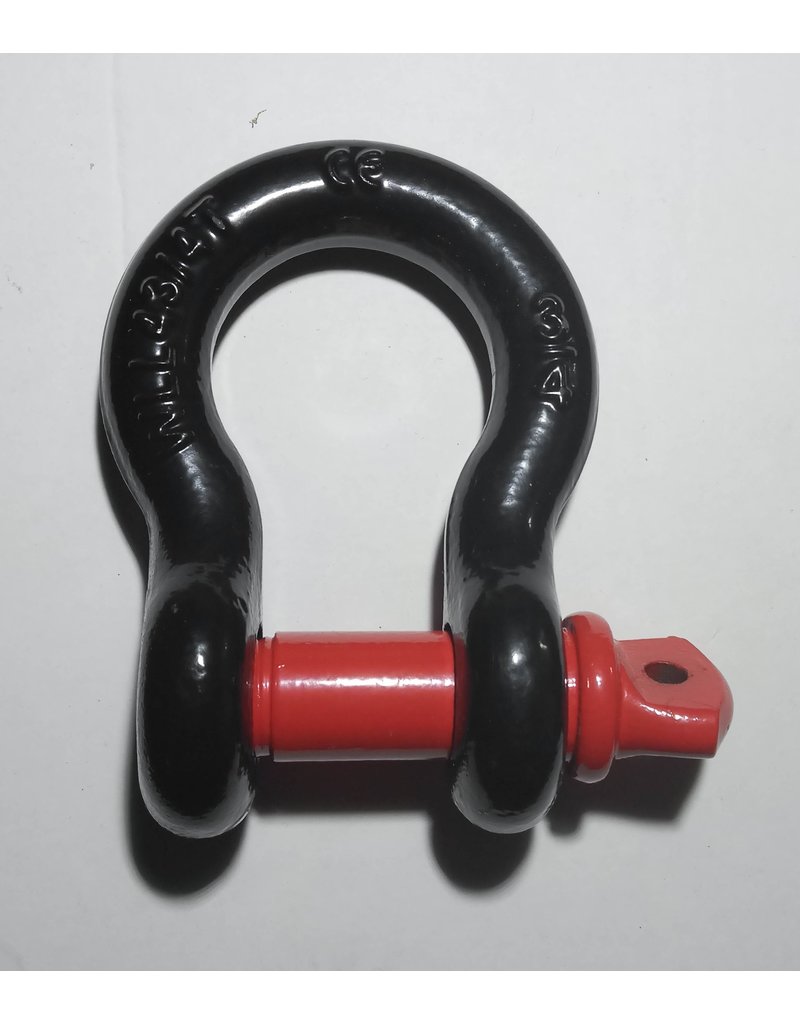

Stamped with WLL i.e. 6 times the safety factor: Minimum breaking load=6x WLL=19.5 T
WLL= 3 1/4 tons

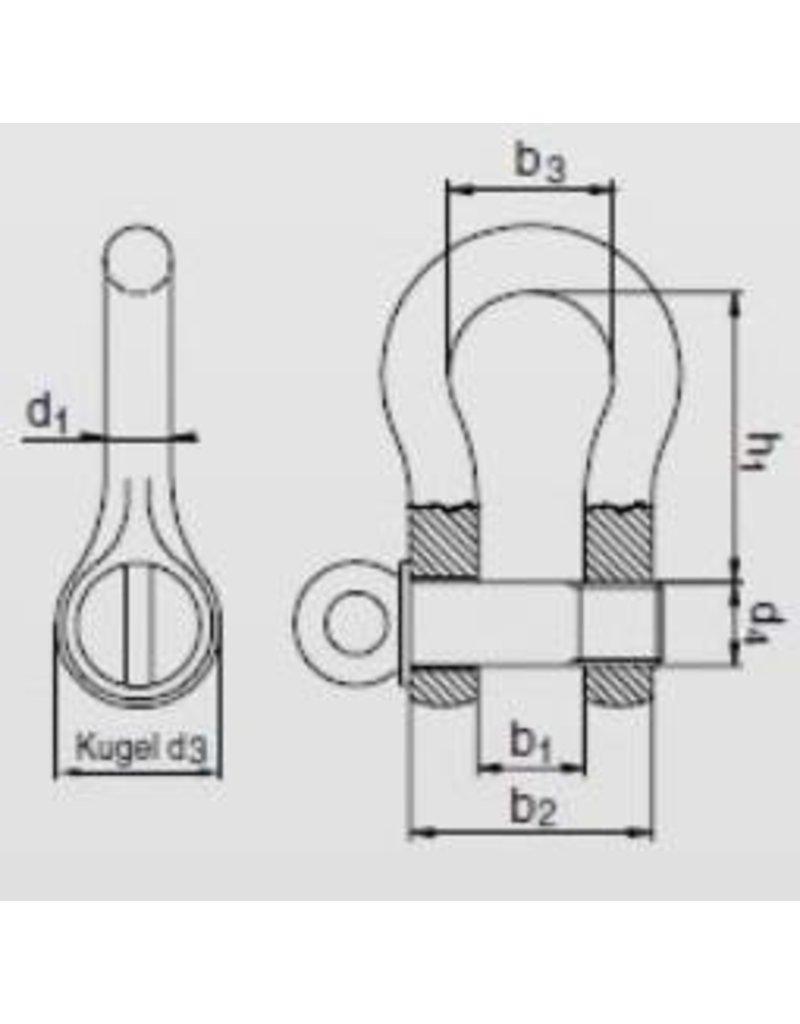

b1=width between legs=28mm
b2=59mm
b3=43mm
d1=17mm
d3=39mm
d4= bolt diameter=19mm
h1=62mm
Weight=587g
The load capacity WLL must not be exceeded.

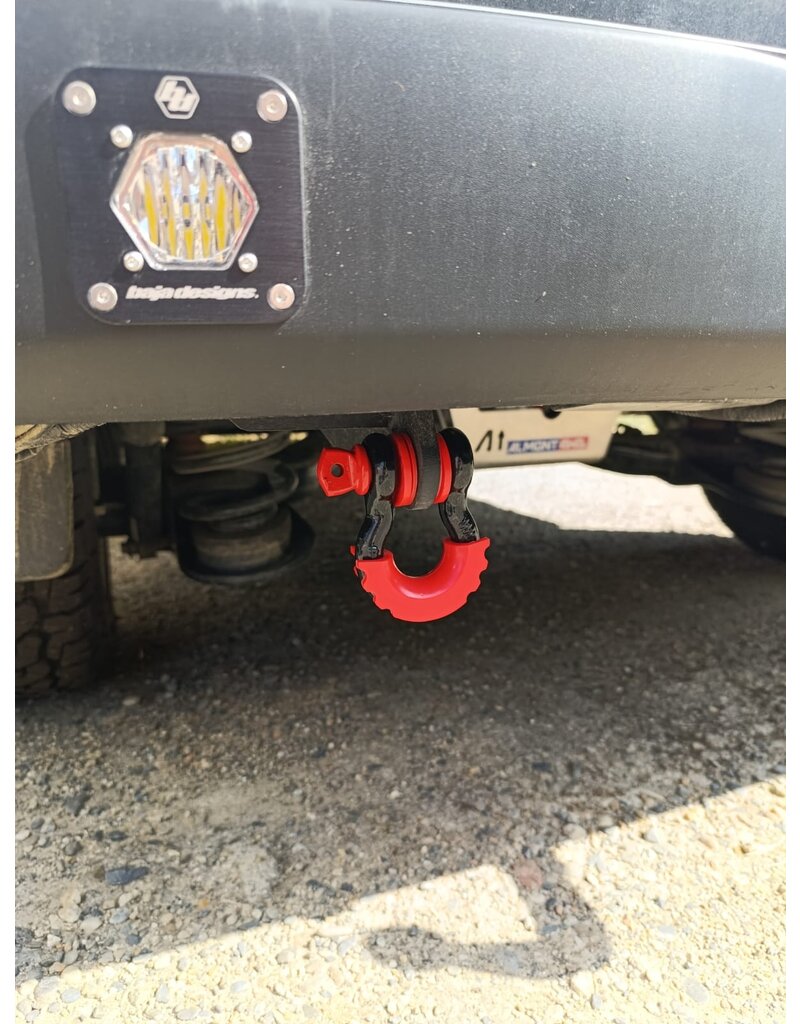

This shackle is ideal for lighter and medium-heavy vans such as VW Transporter, Mercedes Vito or lighter Mercedes Sprinter.

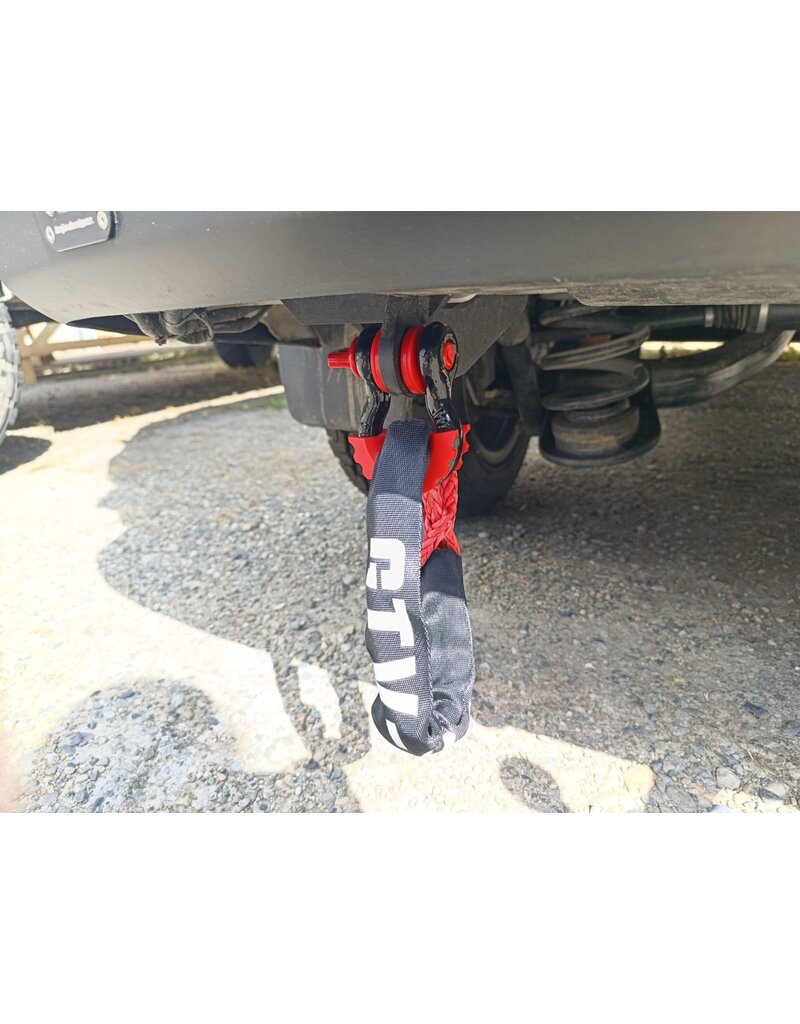

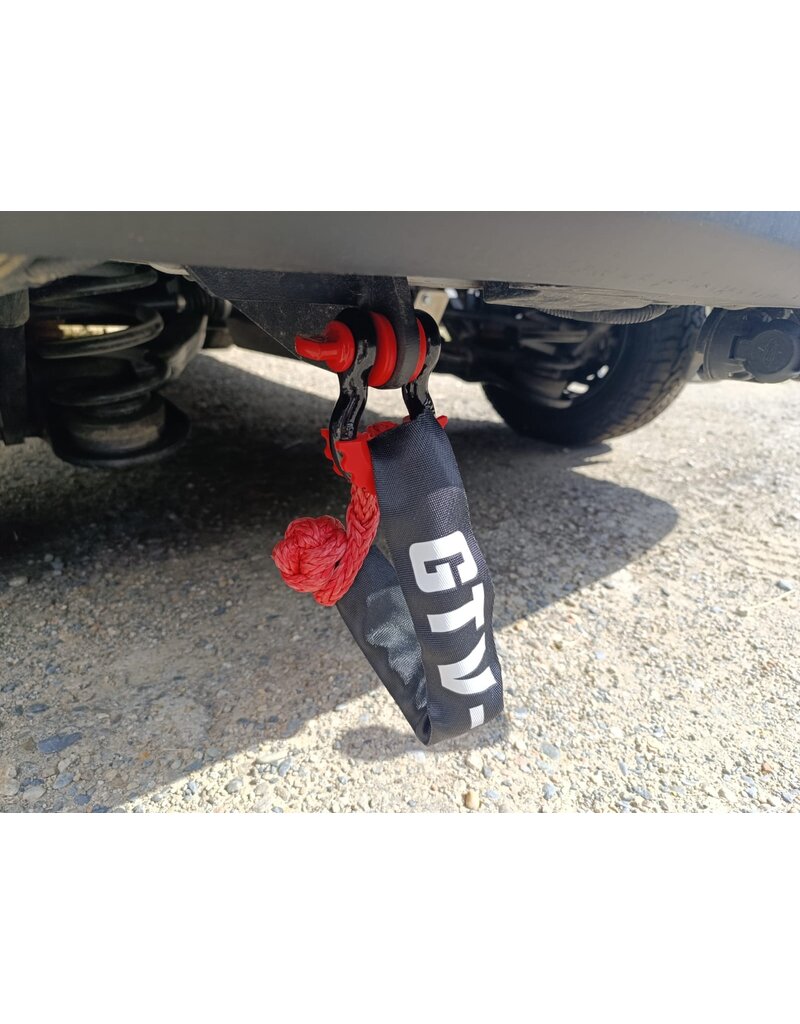

We recommend always forming a triangle for recovery. Please never tighten the bolt as far as it will go, as the shackle can slightly warp under extreme loads. Then the bolt can no longer be opened without a tool. Always turn back the bolt half a turn.
