| Article number: | SH-OM-3/4-RB |
Solid omega shackle in stylish red and black.
Stamped with WLL i.e. 6 times the safety factor: Minimum breaking load=6x WLL=28.5 T
WLL= 4 3/4 tons
b1=width between legs=32mm
b2=70mm
b3=51mm
d1=19mm
d3=47mm
d4= bolt diameter=22mm
h1=73mm
Weight=990g
The load capacity WLL must not be exceeded.

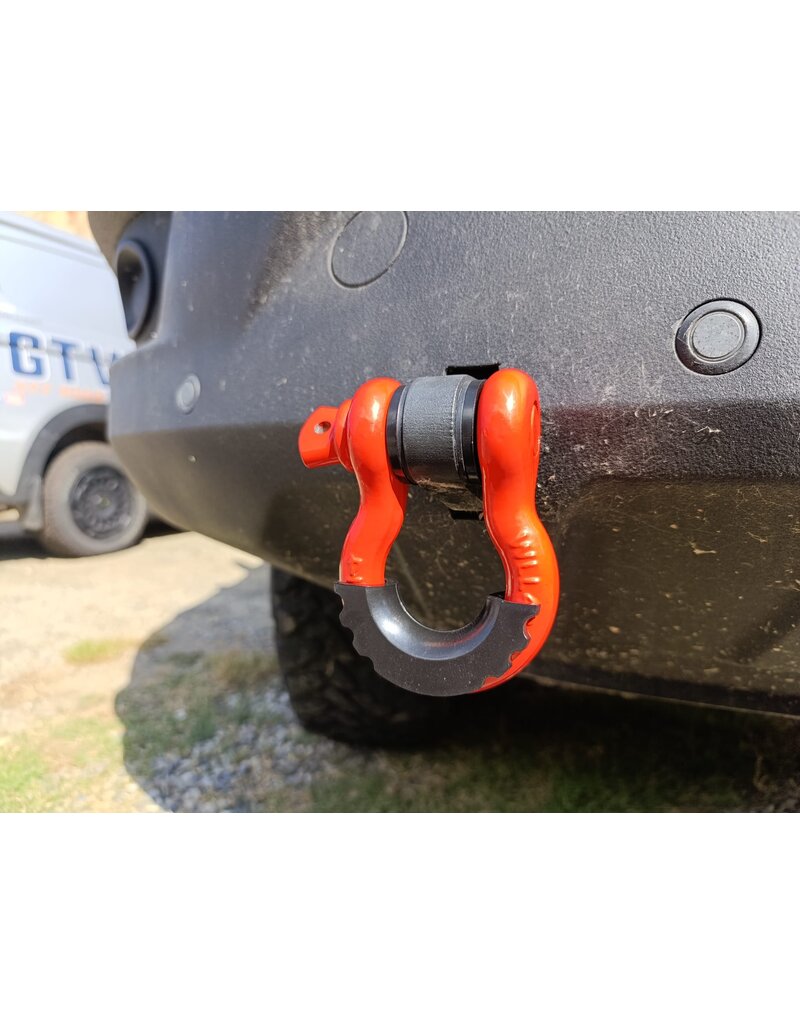

This shackle is ideal for heavy vehicles such as Mercedes Sprinter, VW Crafter and fits the lifting eyes and brackets on the cable winch brackets that we offer.
We recommend always forming a triangle for recovery. Please never tighten the bolt as far as it will go, as the shackle can slightly warp under extreme loads. Then the bolt can no longer be opened without a tool. Always turn back the bolt half a turn.
