| Article number: | 290001 |
Description

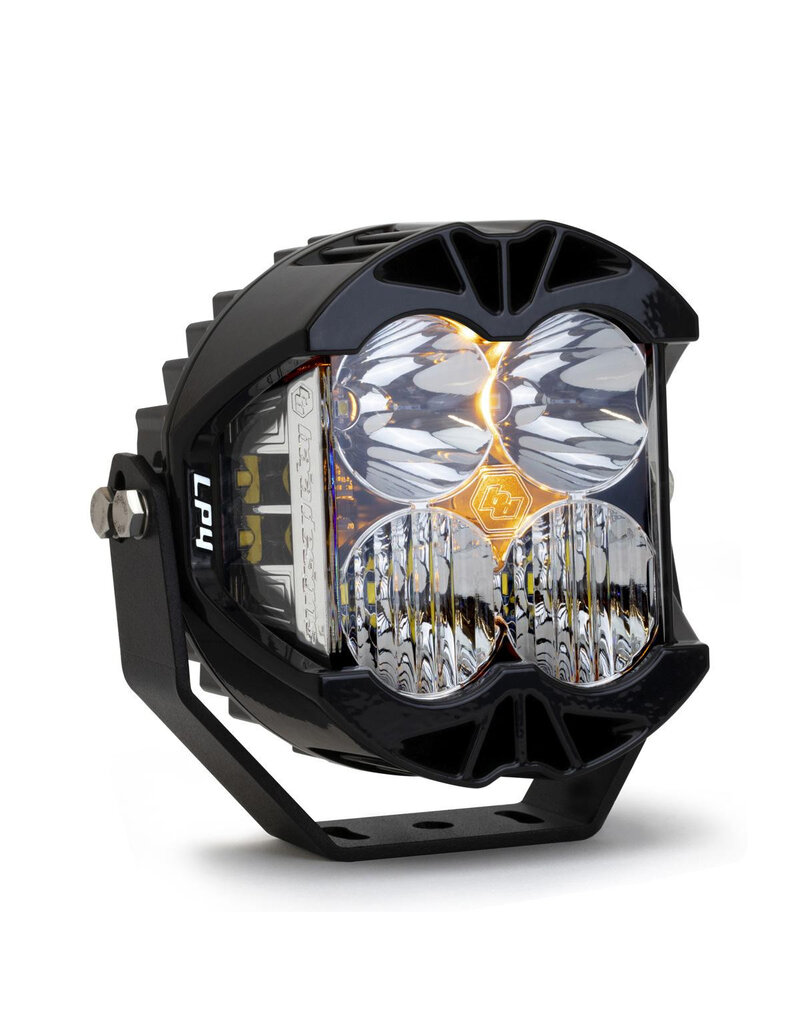

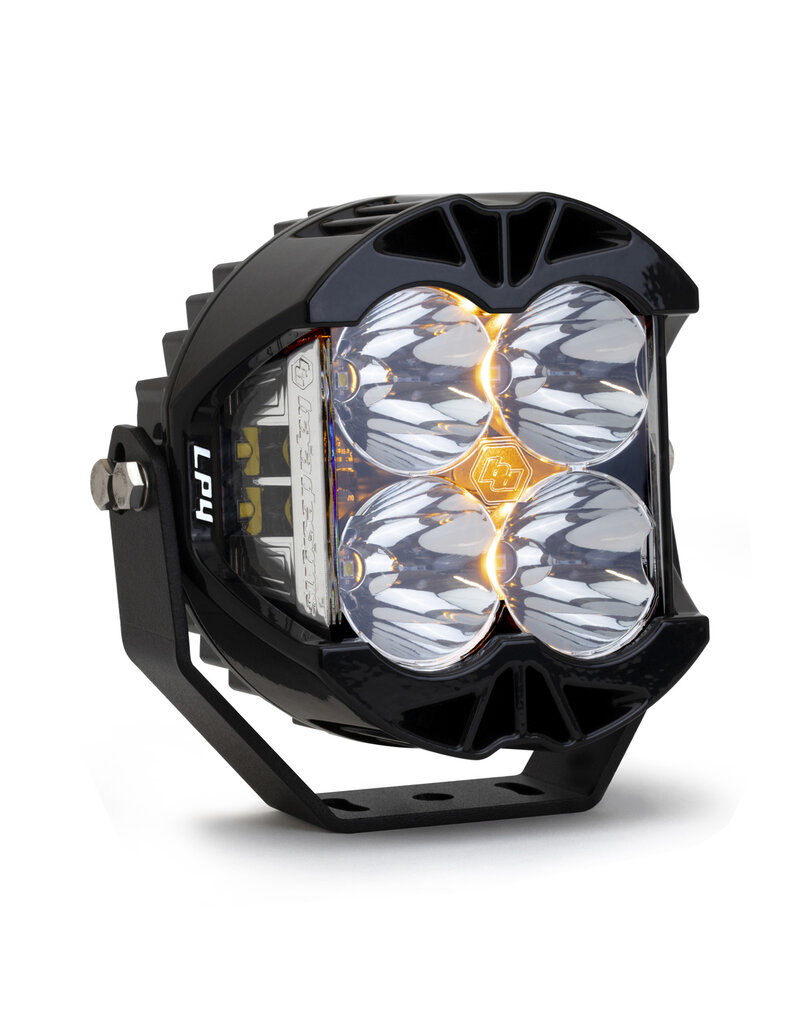

The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot.
To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Depth (cm) | 8,1 |
| Height (cm) | 12,95 |
| Length (cm) | 12,95 |
| Weight (kg) | 1,27 |
With so much power, a cooling system was an integral part of making the LP series perform at the highest lever. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.
One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.
The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

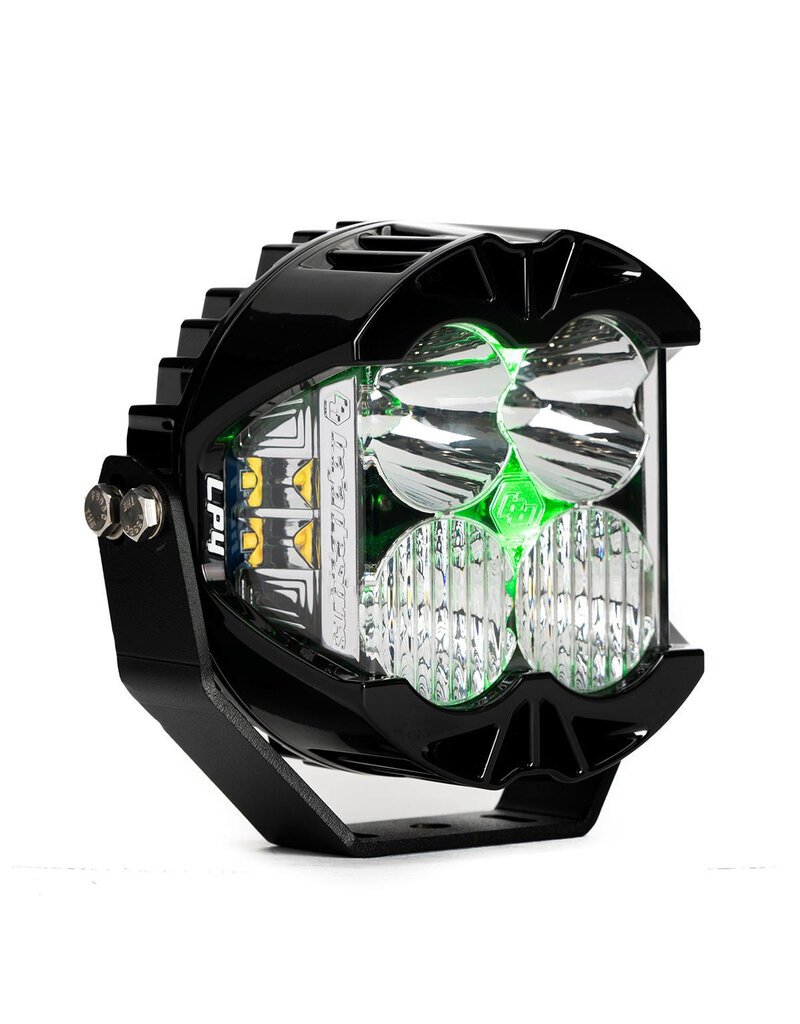

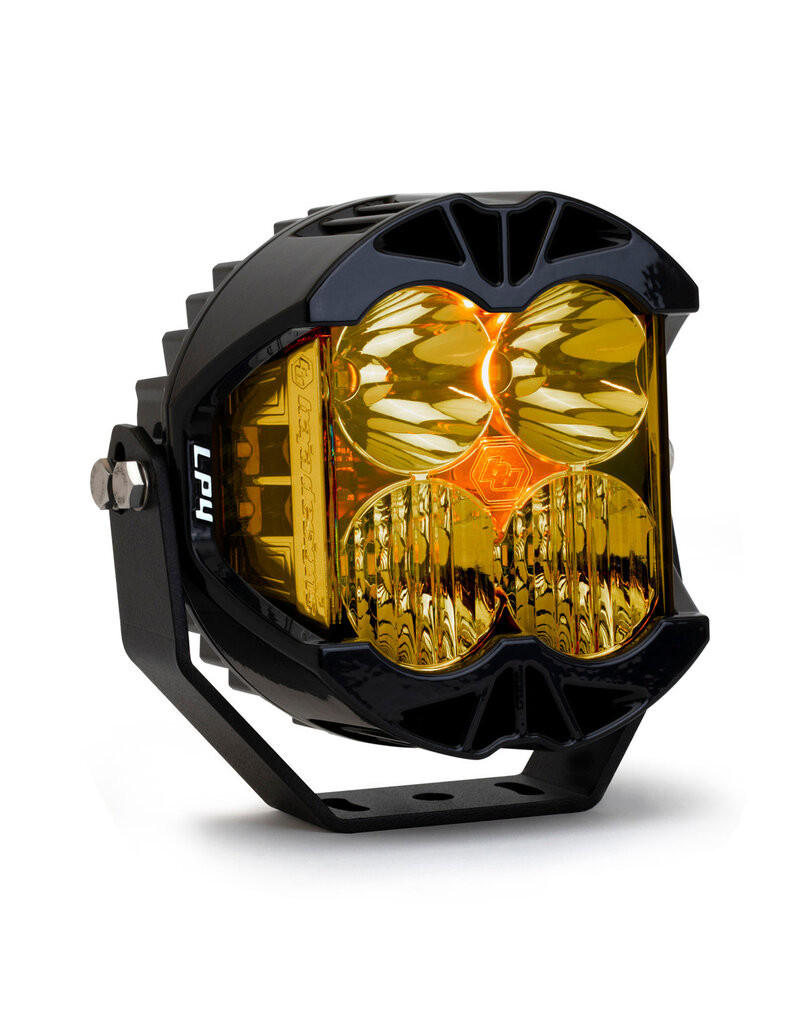

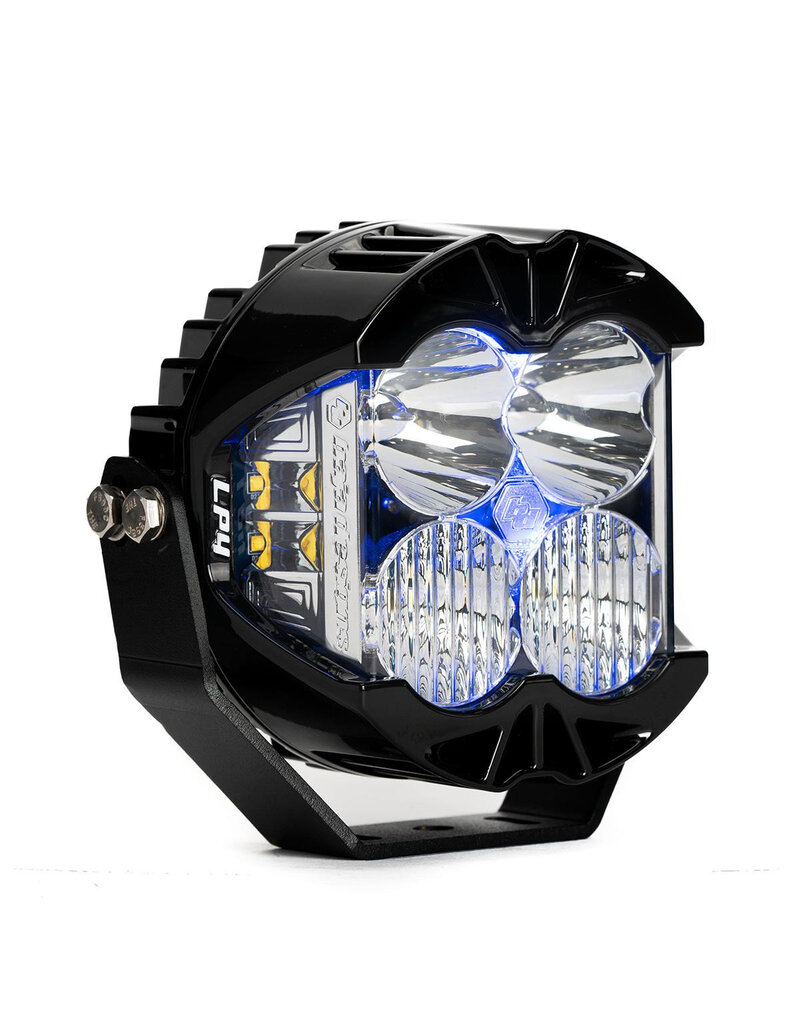

Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.
Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.
At Baja Designs, we design our lighting solutions with one goal: to win races. When we achieve this goal, we know we’ve created a product we’re proud to introduce to the general market. The LP Series combines the research and development from all our past and current Baja Designs lights, resulting in the most powerful all-in-one off-road light ever engineered. Watch the inside look: The LP Series video for a glimpse into the technology, features, and performance of the Scientists of Lighting’s flagship powerhouse
