Lazer LINEAR-48 LED beam 51" /1282mm 18.000 Lumen

€965,00
Article number: 0L48-LNR

Lazer LINEAR-48 LED beam 51" /1282mm 18.000 Lumen

Highly efficient 3W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP67 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed and manufactured in UK



Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux 18000 Lm
Total Driver 'FOV' Flux † 12816 Lm
Colour Temperature 5000K
Number of High Output LEDs 48
Power Consumption 168 Watts
Current Draw (at 14.4V) 11.7 Amps
Start-up Time * 100ms
CERTIFICATION
High Beam N/A
ECE Reference N/A
DIMENSIONS
Width 1282 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA

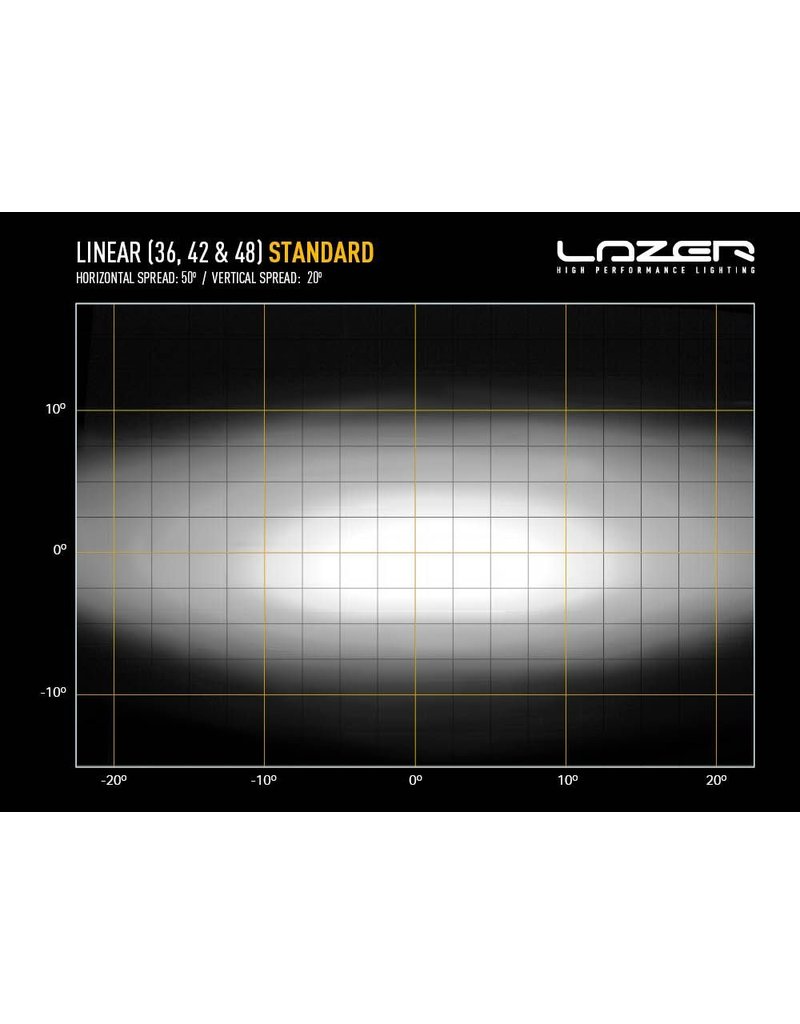

Horizontal Beam Angle 50°
0.25 lx Line 1101 metres
0.5 lx Line 779 metres
1 lx Line 550 metres
3 lx Line 318 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
