Holding module PELI-Case 1535 Air, for our rear carrier systems

Article number:

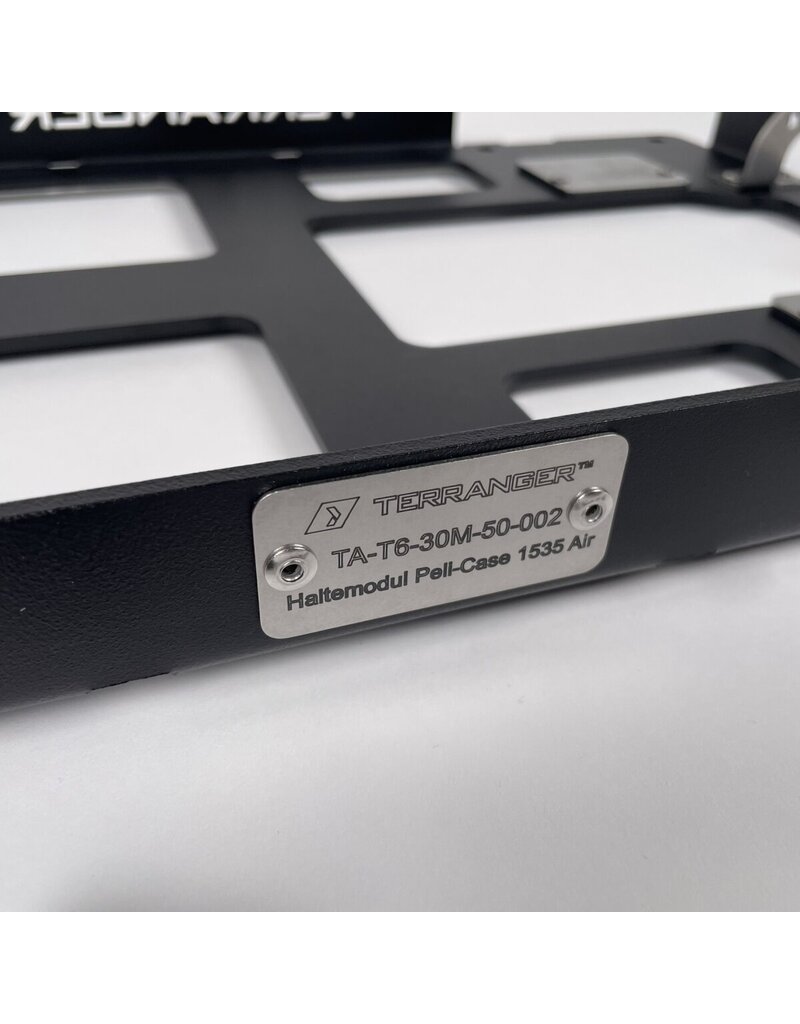

TA-T6-30M-50-002

Holding module PELI-Case 1535 Air, for our rear carrier systems, by Terranger





Holding module for a Peli-Box Mod. 1535 Air (plastic box)

incl. adaptation for Airline lashing rails

made of aluminum (black powder-coated) and stainless steel

Technical data:

• Dimensions: approx. 33 cm wide x 5 cm deep x 61 cm high*
• Material: aluminum and stainless steel
• Weight: approx. 2.0 kg
• Aluminum surface: black powder-coated, fine structure

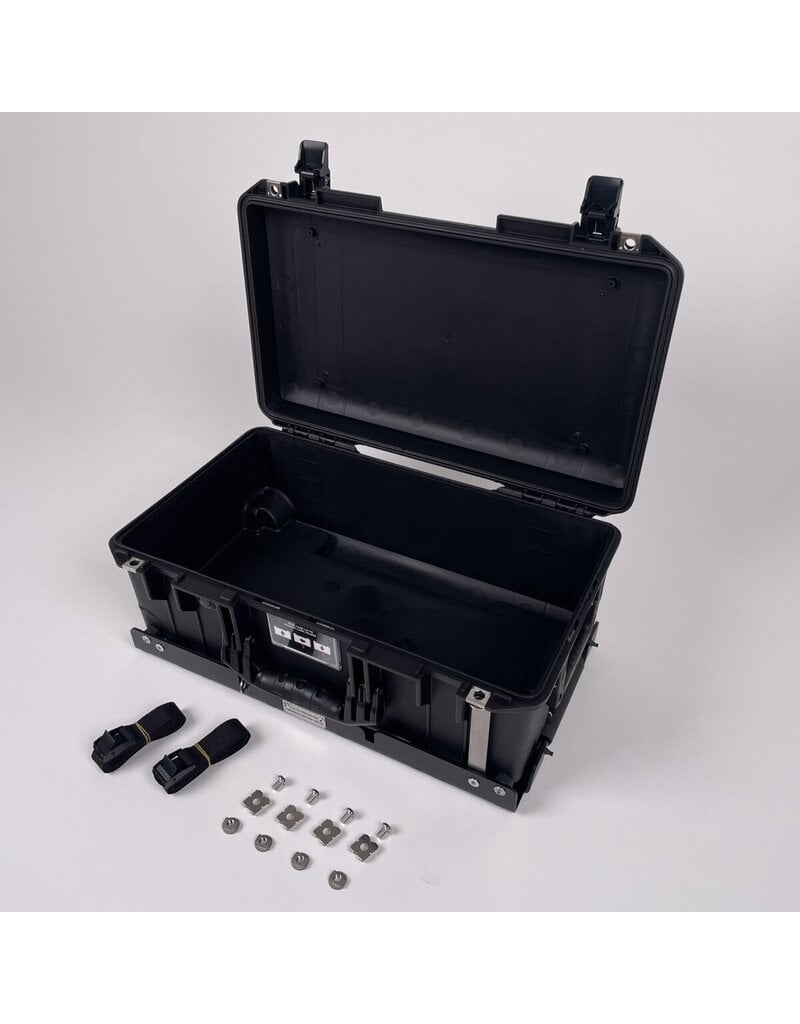

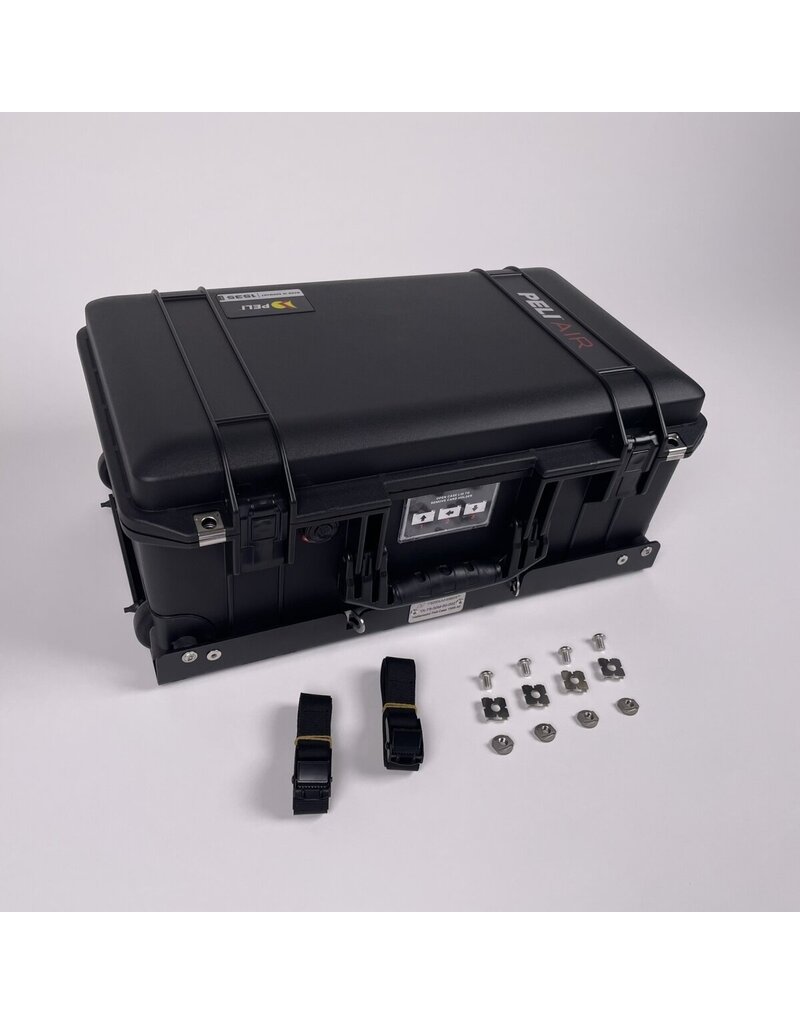

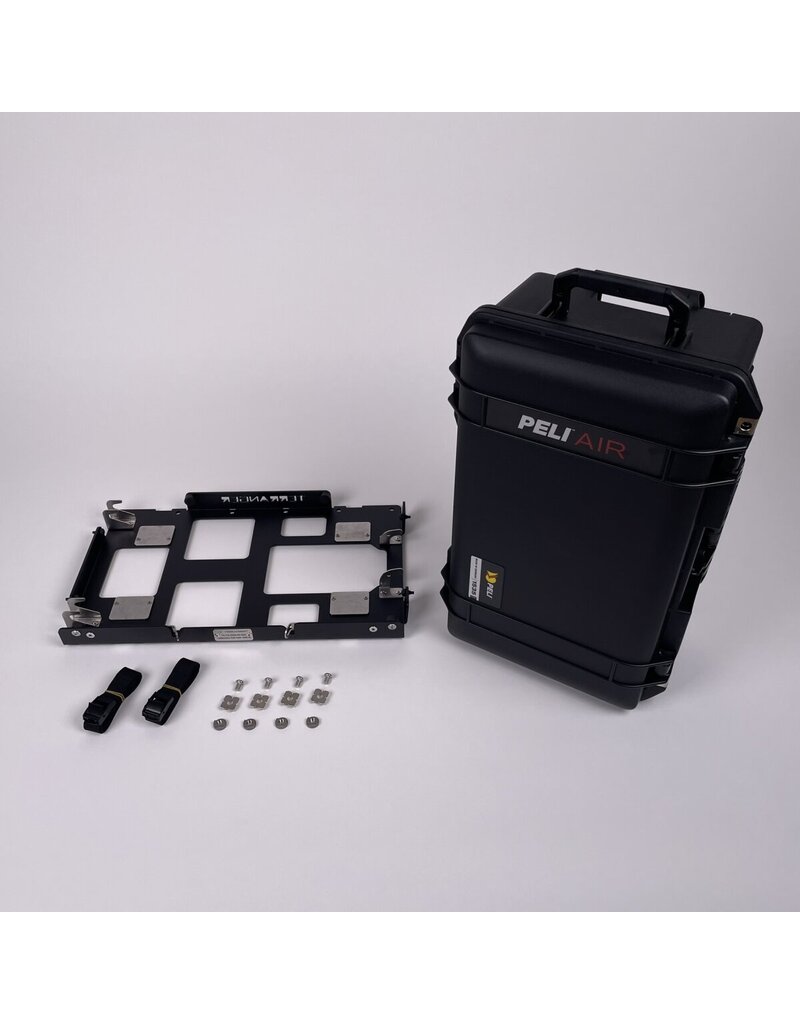

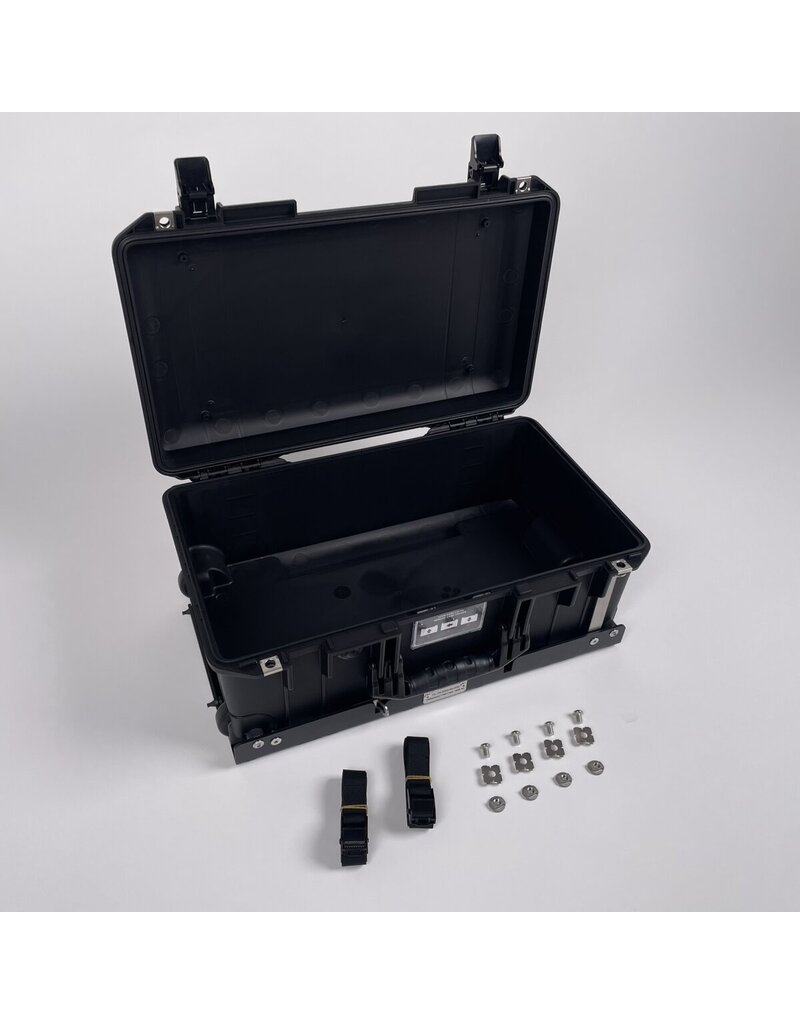

Scope of delivery:

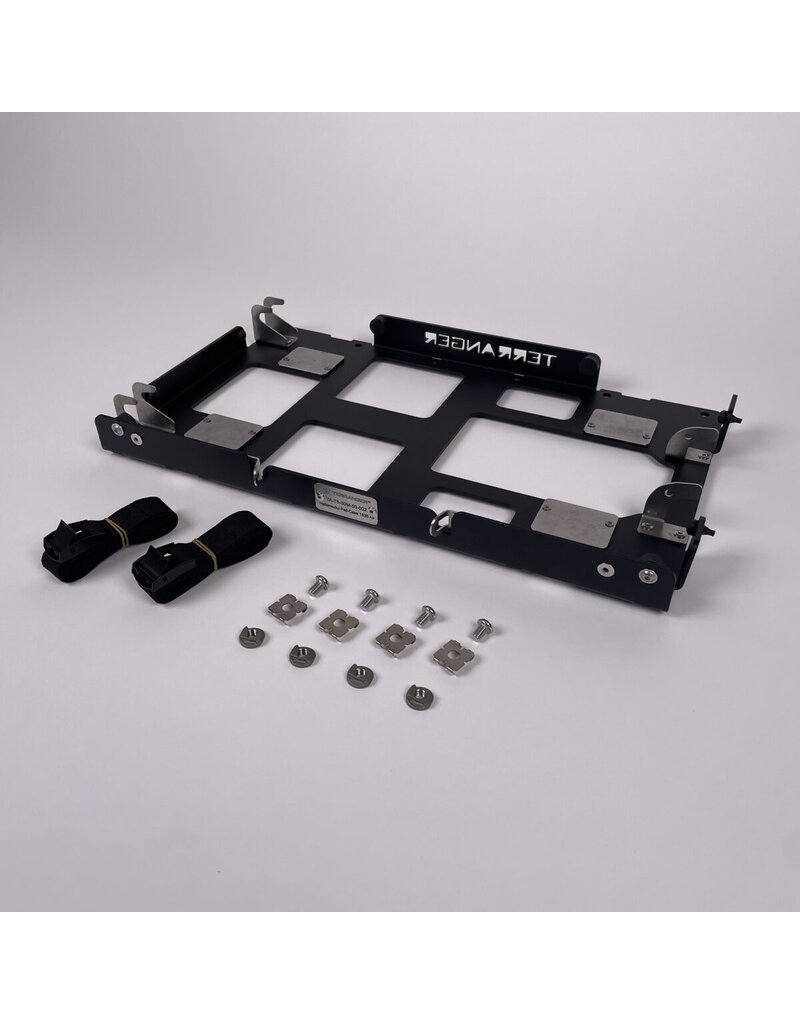

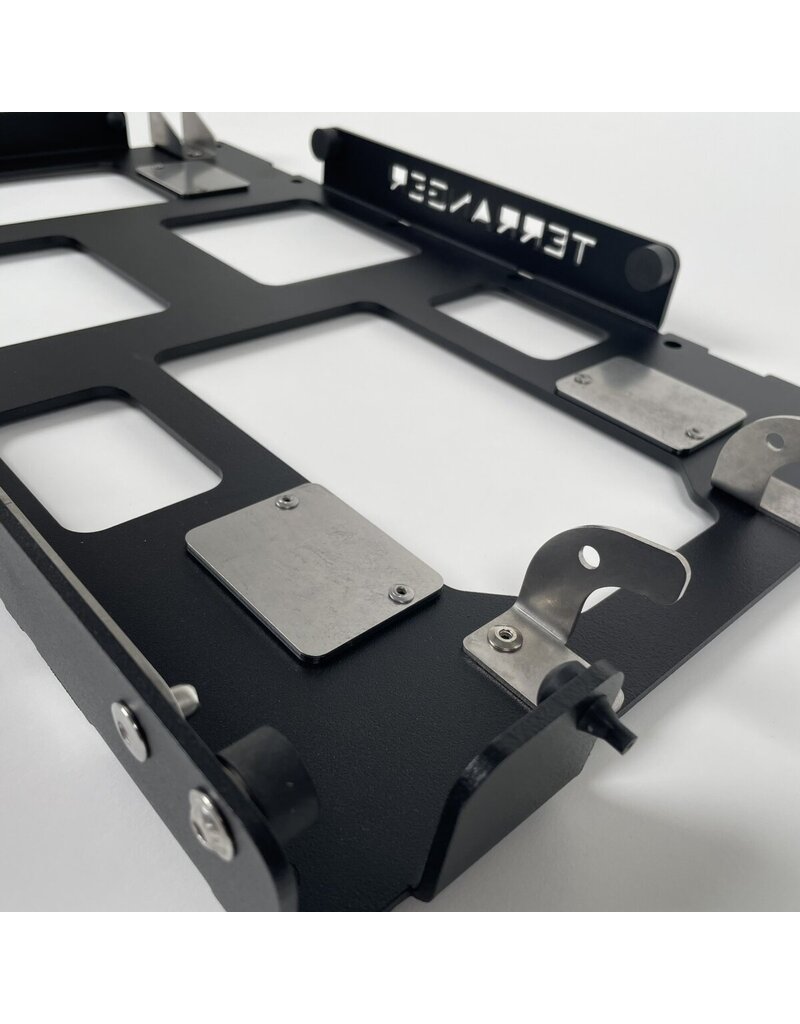

• 1x retaining plate incl. two stainless steel hinged holders for padlocks
• 4x M8 fastening fittings for the airline lashing rails
• 2x textile lashing straps

Description of handling:

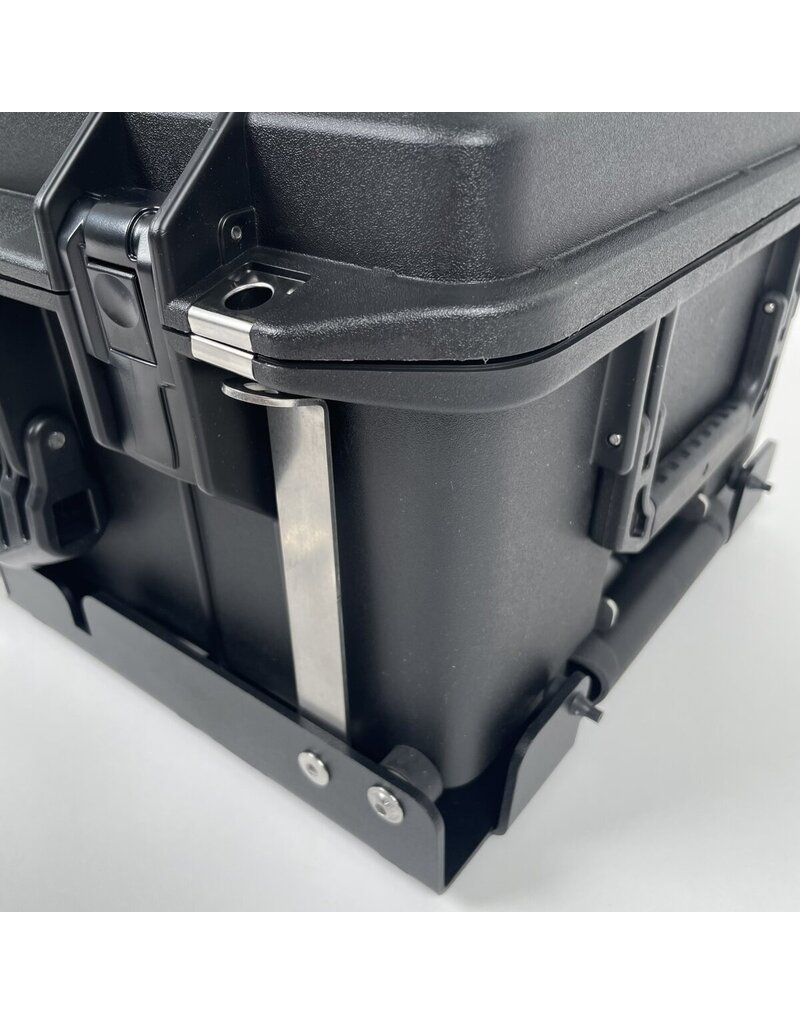

The Peli-Box is placed in the holder from above. The box stands up at the bottom and hooks onto the holding plate provided at the top with the extendable handle. The box can be opened in this position. The two lashing straps must be closed to secure the box during transportation or while driving. To prevent theft of the entire box and unauthorized opening, the two securing plates can be folded out and connected to the box with two padlocks.

* The holder module can be mounted both vertically and horizontally.

Up to four modules can be mounted on our "modular" rear carrier system.
