Hardness-adjustable (VA and HA) KONI-ADJUST-SENSITIV-AT -COMFORT Complete body lift/suspension kit (+35-40 mm) for VW T5, T6, and T6.1 from TWIN MONOTUUBE PROJECT

For 4Motion, we also recommend ordering the TMP-DIFF set

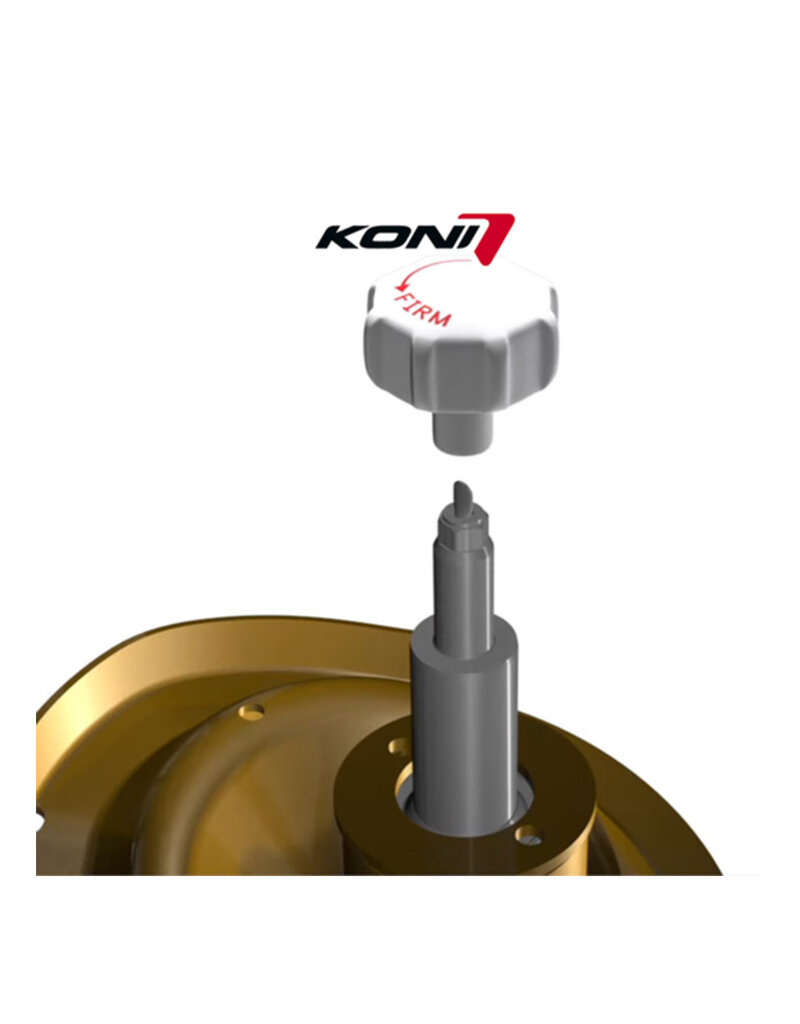

Approx. +30 to +40 mm complete suspension lift kit, but since our springs are manufactured by the original equipment supplier for PORSCHE, they offer even more comfort, even better driving dynamics, and even greater durability. Includes all molded parts (see scope of delivery) plus variable height adjustment on the rear axle with the molded part supplied. Ingenious COMFORT tuning in combination with the XL-long KONI-ADJUST-SENSITIV-AT shock absorbers, which offer maximum comfort plus hardness adjustment, plus even more suspension travel. Stepless hardness adjustment at the front from the outside (top) with the supplied hand wheel! The rear axle is also hardness-adjustable, but at the rear when removed. Furthermore, these are even longer than the Bilstein dampers and are based on our successful Twin-adjust-Project-Sensitive coilover suspensions! Maximum comfort, sensitive lift, which is also very pleasant for long distances and everyday use. Plus, even longer travel (XL length) to offer improved articulation in addition to shock absorption off-road, plus the option of rebound hardness adjustment.

Suitable for T5, T6, and T6.1 (without DCC; if DCC is present, it must be professionally deactivated).

TWIN-MONOTUBE-PROJECT offers a new evolution in terms of “driving comfort,” “driving dynamics,” and “durability.”

Springs developed exclusively for TWIN-MONOTUBE-PROJECT, produced by a renowned German original equipment supplier. Our new supplier is the world's leading series producer for numerous renowned car brands such as “Porsche,” “Mercedes,” etc. - Made in Germany

This means that the comfort kits from TWIN-MONOTUBE-PROJECT offer the following advantages over all other springs known to us:

• Significantly improved driving comfort and driving dynamics due to:
  • Spring development adapted to the force distribution – only a series manufacturer can achieve this level of development!
  • Side-load spring on the front axle enables additional optimal force distribution
  • Guaranteed system functionality thanks to specially developed, precisely fitting molded parts minimizes creaking and rattling noises
  • Variable adjustment of the HA height thanks to optionally combinable, specially developed molded parts, which are included in the scope of delivery
• Significantly higher breaking strength and durability thanks to state-of-the-art manufacturing technologies:
  • High-performance wire produced in-house and stored with particular care – “Made in Germany”
  • Cold forming enables high-strength steel without subsequent tempering and with maximum design freedom
  • Triple irradiation without beam shadows
  • 100% fully integrated and automated production process with particularly gentle material flow
• Maximum corrosion resistance for the highest demands
  • Epoxy powder coating guarantees improved stone chip protection through the integration of special energy-absorbing structures and increased film layer thicknesses
• OEM standards for quality control and approvals:
  • Continuous vibration tests in accordance with series specifications (i.e., under real conditions) with temperature changes and the use of spray mist in conjunction with all other spring manufacturers known to us who exclusively perform dry vibration tests
  • 100% tensile strength tests
  • 100% digital laser control of the surface quality of the raw material
  • 100% digital control of spring force
• Combined with the XL-long KONI ADJUST SENSITIVE AT shock absorbers, which offer maximum comfort plus hardness adjustment, plus even more suspension travel. Manufactured exclusively for us by KONI Netherlands based on our successful Twin Adjust Project Sensitive tuning.

1) For VW T5, T6, T6.1 but without California, without buses with conversion/shelves

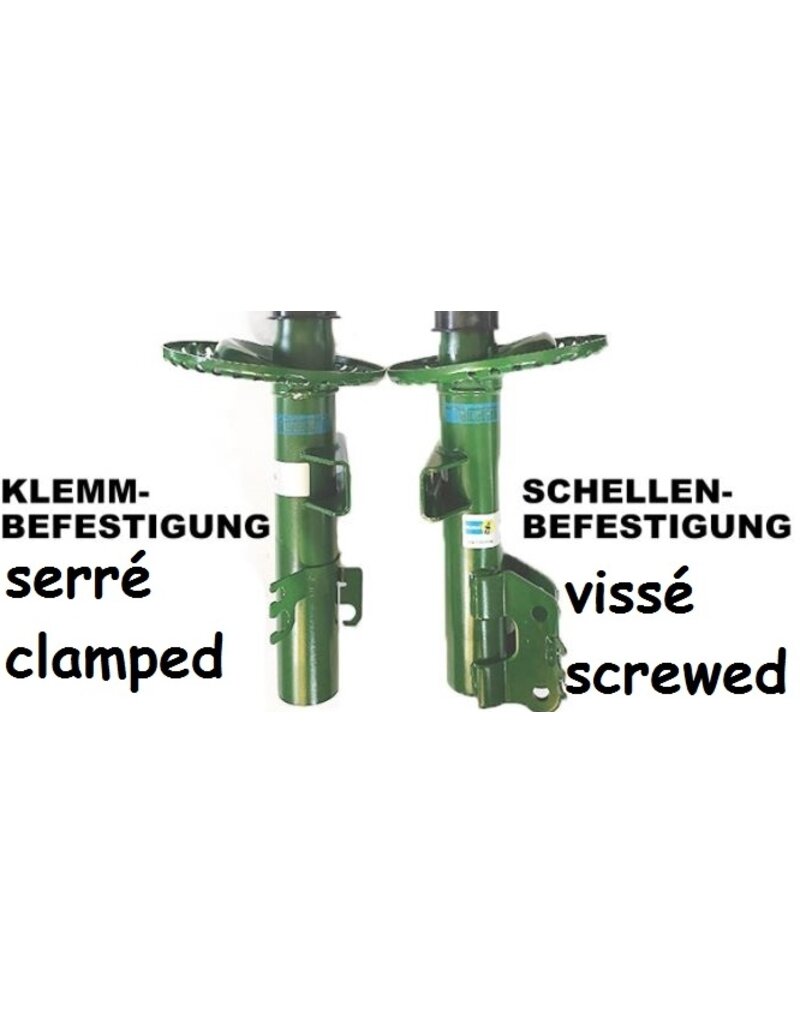

a) For vehicles with clamp mounting on the front axle (T30) = Item no.: TMP-H11-K30-T5T6.1

b) For vehicles with clamp mounting on the front axle (T32) = Item no.: TMP-H11-K32-T5T6.1

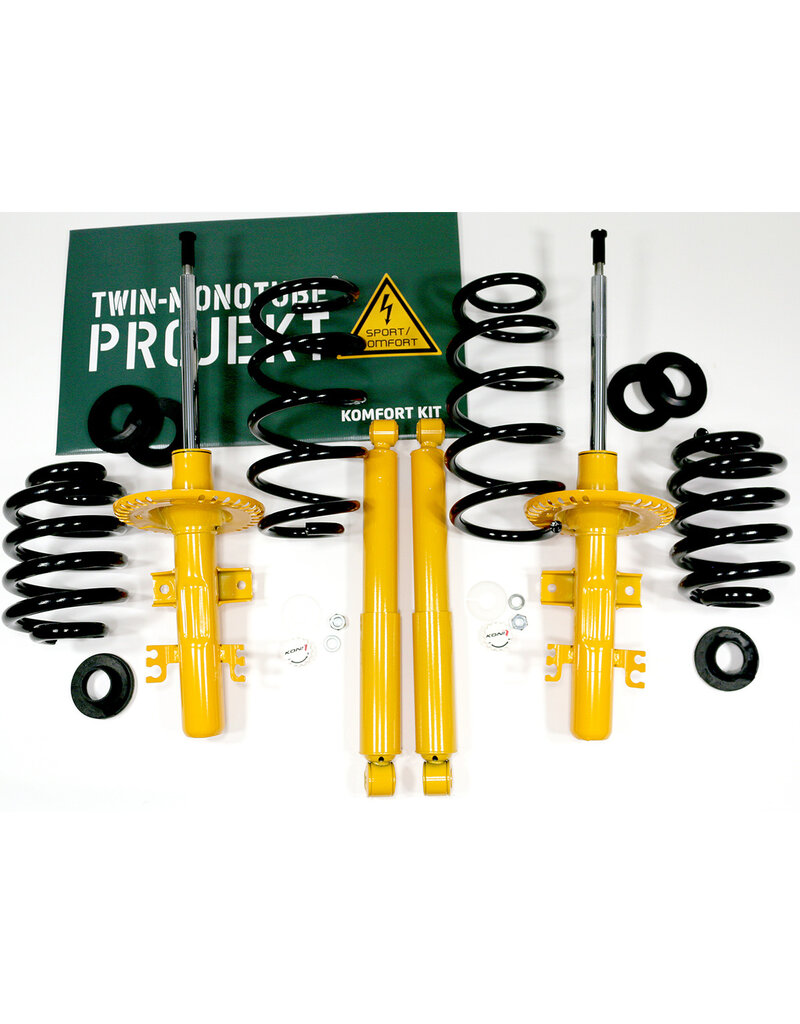

Scope of delivery

2 pcs x H-VW-T5T6.1-1VA (spring)

2 pcs KONI-ADJUST-SENSITIV-AT VA shock absorbers (for clamp mounting, item no. KONI-HD-AT-VA1, or for clamp mounting, item no. KONI-HD-AT-VA2-T32)

2 pcs x H-VW-T5T6.1-1HA (spring for Transporter, Caravelle & Multivan without removal)

2 pcs KONI-ADJUST-SENSITIV-AT HA shock absorbers Item no. KONI-HD-AT-HA2

2 pcs x H-VW-T5T6.1-spring plate-2HA (upper spring plate)

2 pcs x H-VW-T5T6.1-spring plate-1HA (lower spring plate)

2 pcs x H-VW-T5T6.1 spacer ring-2HA (10 mm) for optional, individual height adjustment in accordance with the information in the report.

2) For VW T5, T6, T6.1 only for California, or only for buses with conversion/shelves

a) For vehicles with clamp mounting on the front axle (T30) = Item no.: TMP-H12-K30-T5T6.1

b) For vehicles with clamp mounting on the front axle (T32) = Item no.: TMP-H12-K32-T5T6.1

Scope of delivery

2 pcs x H-VW-T5T6.1-1VA (spring)

2 pcs KONI-ADJUST-SENSITIV-AT VA shock absorbers (for clamp mounting, item no. KONI-HD-AT-VA1, or for clamp mounting, item no. KONI-HD-AT-VA2-T32)

2 pcs x H-VW-T5T6.1-2HA (spring for California or buses with removal/shelves)

2 pcs KONI-ADJUST-SENSITIV-AT HA shock absorbers Item no. KONI-HD-AT-HA2

2 pcs x H-VW-T5T6.1-spring plate-2HA (upper spring plate)

2 pcs x H-VW-T5T6.1-spring plate-1HA (lower spring plate)

2 pcs x H-VW-T5T6.1-spacer ring-2HA (10 mm) for optional, individual height adjustment in accordance with the information in the report.
