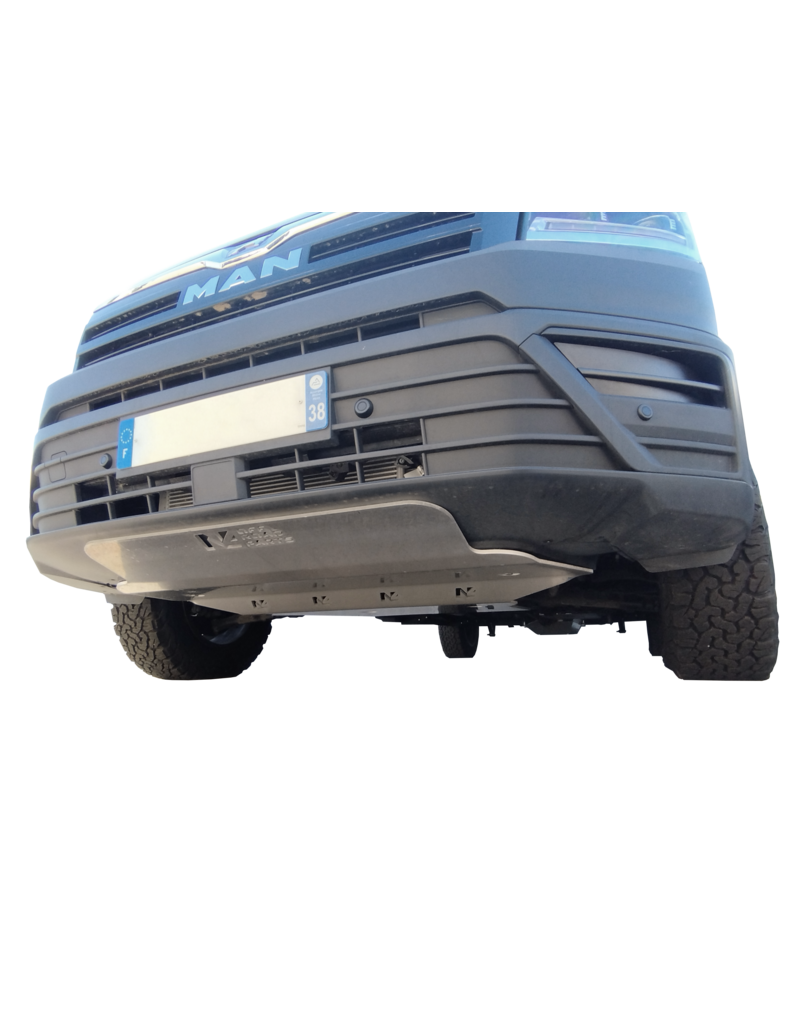

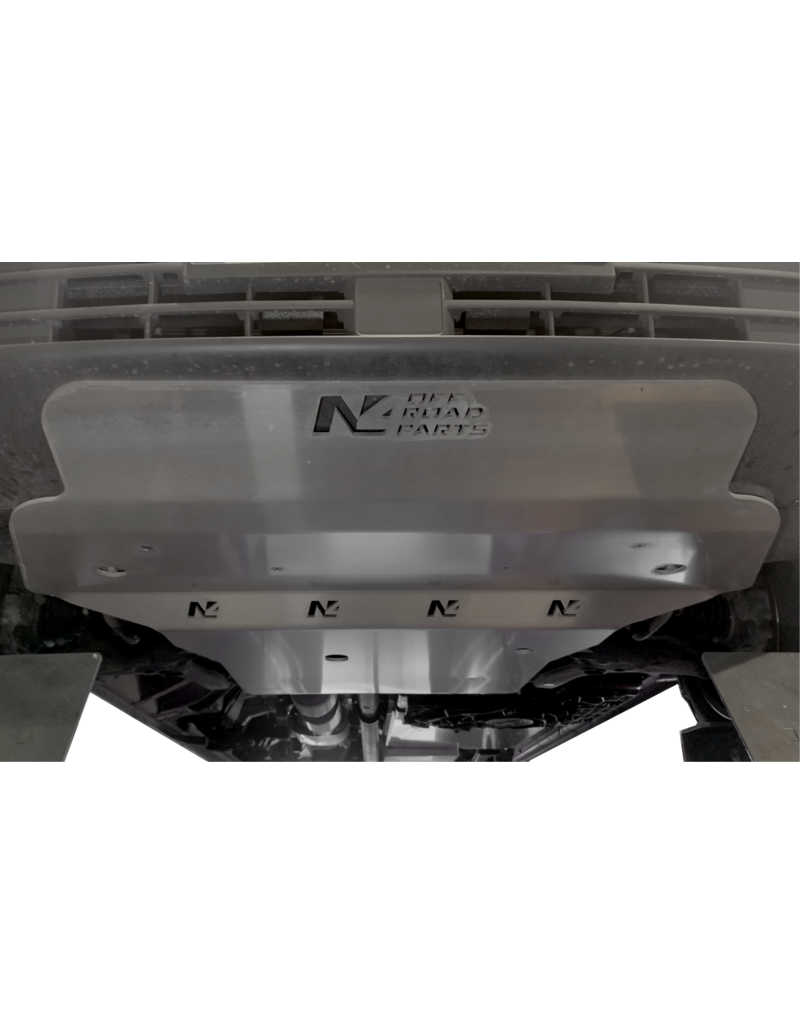

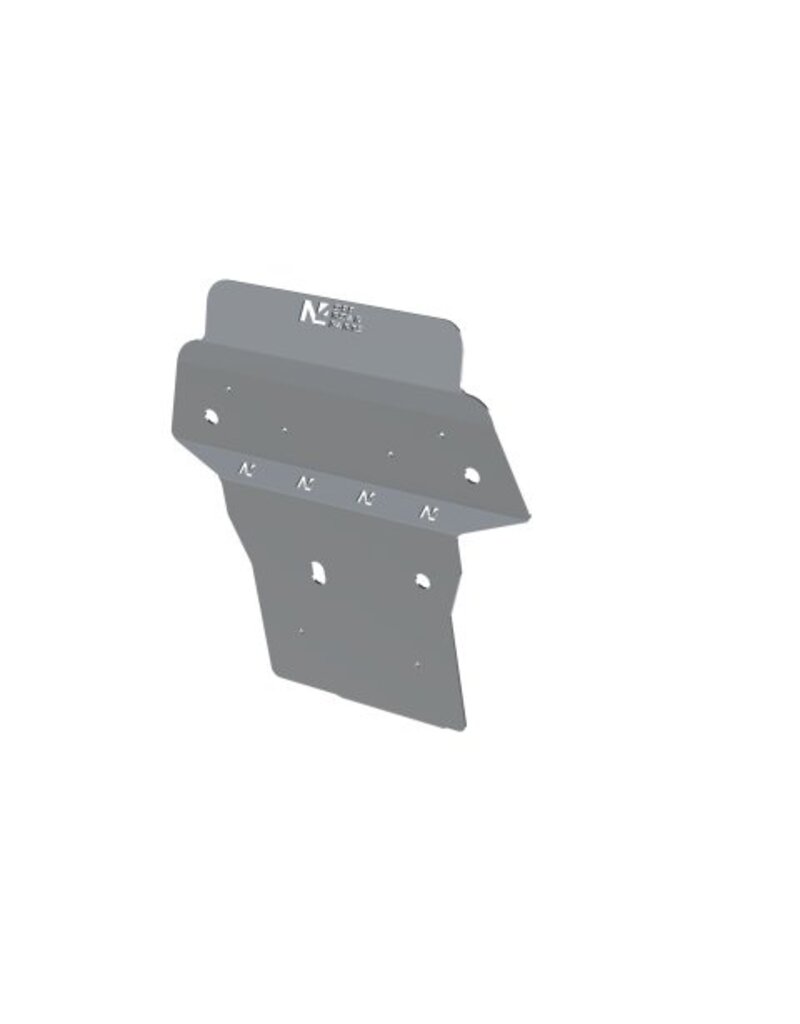

engine and transmission skid plate 8mm aluminum for Volkswagen Crafter 4x4 2017+ / Man TGE 2017+
The front skid plate protects the exposed components under the vehicle, including the engine, transmission, and transfer case. Made of 8 mm aluminum, it is designed for the 2017+ Volkswagen Crafter 4Motion and 2017+ MAN TGE.
Its specialized design allows for discreet installation beneath the front bumper without requiring any cuts to the plastic under the bumper. Installation is performed using steel brackets supplied, along with a crossbar and the necessary hardware.
The skid plate also preserves access to the engine oil drain plug.
Technical Specifications:
- Protects the engine, transmission, and transfer case
- High-strength aluminum
- Thickness: 8 mm
- Access to the engine oil drain plug
- Mounts using the included steel brackets
- No need to cut the plastic under the bumper
- Designed and manufactured in France
Function and Use:
- Protects exposed mechanical components from impacts, debris, and friction
- Provides additional safety for your self-supported outdoor and van life adventures
- Maintains access to maintenance points by allowing access to the drain plug
Installation:
- Remove the original screws to install the crossbar
- Install the brackets into the mounting cradle
- Position the shield using the supplied hardware
- Tighten the assembly according to the torque specifications in the instructions
- Mounting kit includes crossbar, brackets, spacers, screws, and washers
Advantages:
- 8 mm aluminum suitable for demanding applications
- Access to the engine drain plug is maintained
- Easy installation with the included brackets and crossbar
- No need to cut the plastic under the bumper
MAN TGE:
- 4x4 2,0TDI (2017 onwards)
- 4x2 2,0TDI (2017 onwards )
VOLKSWAGEN Crafter II:
- 4x4 2,0TDI (2016 onwards )
- 4x2 2,0TDI (2016 onwards )
