| Article number: | ARB-CKMP12V2 |
Powerful, Portable, Ready for the Trail.

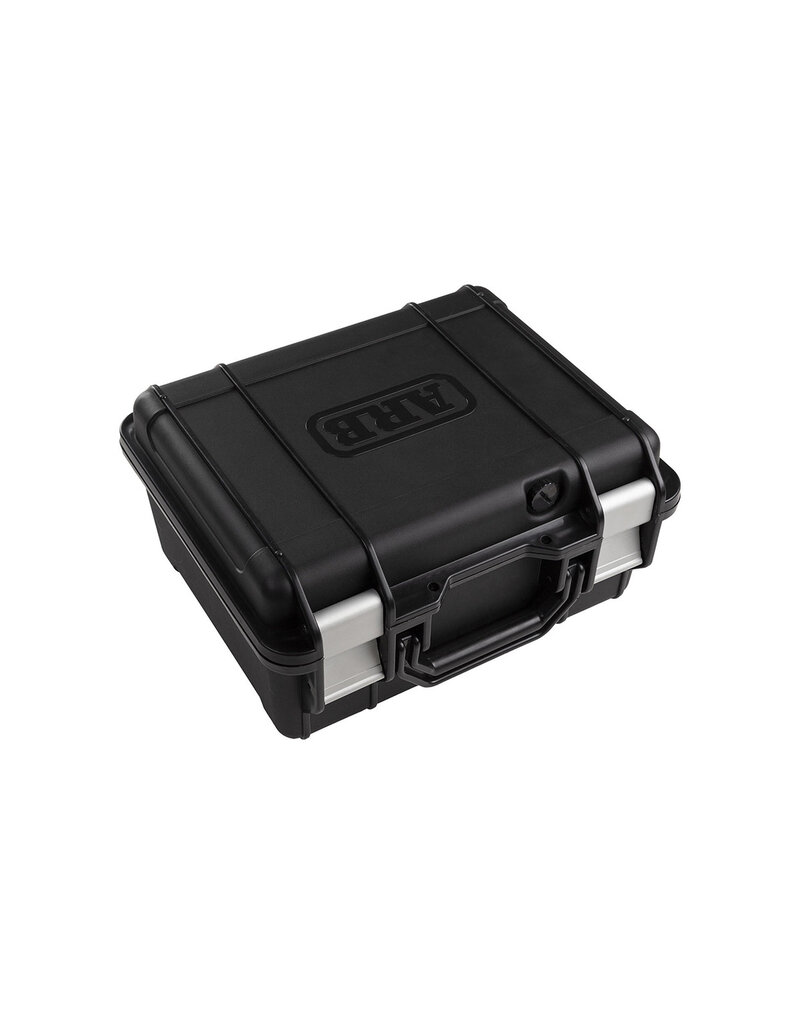

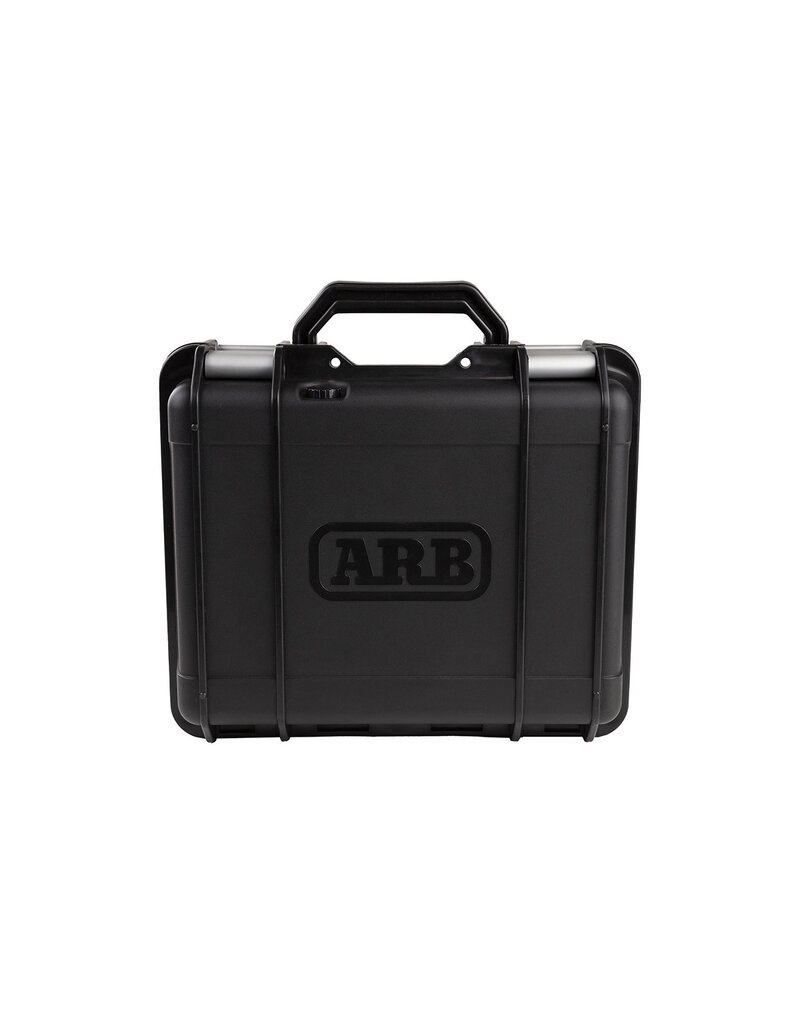

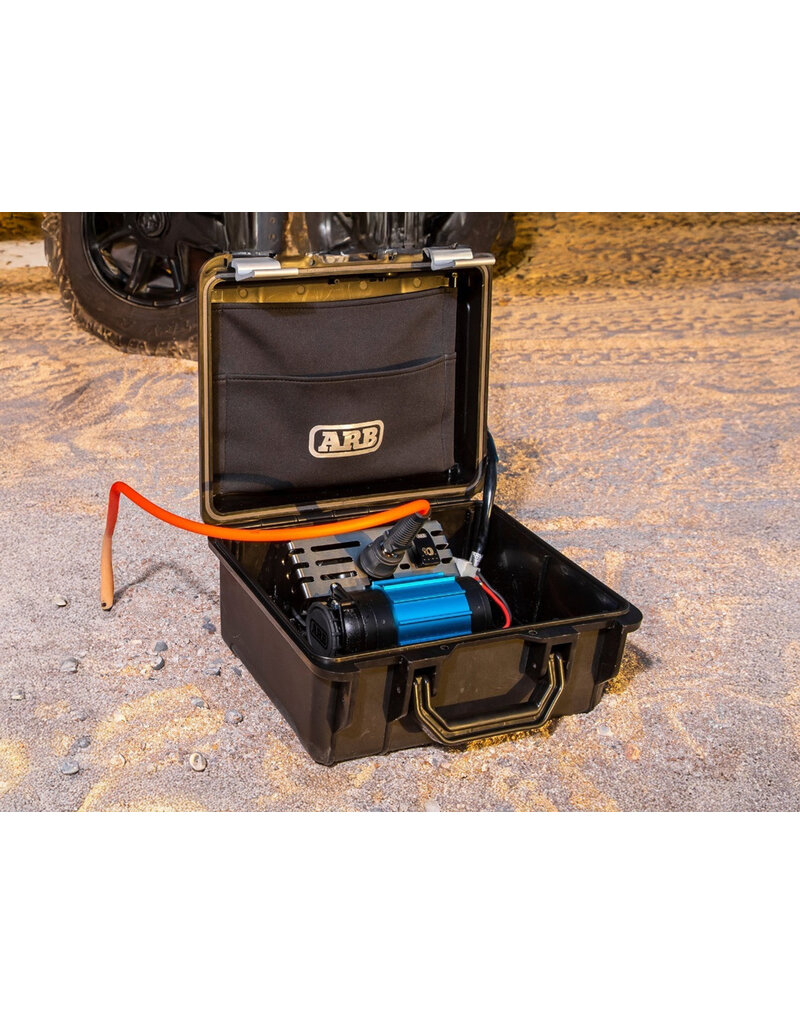

The ARB 12V Single Compressor Kit – Version 2 is a rugged all-in-one solution for quickly inflating tires in off-road conditions or during daily 4x4 use. Delivering up to 87.2 L/min (free flow), this high-output compressor is housed in a durable impact- and water-resistant polypropylene case and comes equipped with a 7-meter high-temperature air hose (rated to 150 psi), ARB quick-connect fittings, a bead seating tool, and a full inflation accessory kit neatly stored in a neoprene organizer.
What’s New in Version 2?
• Improved internal layout and hose management

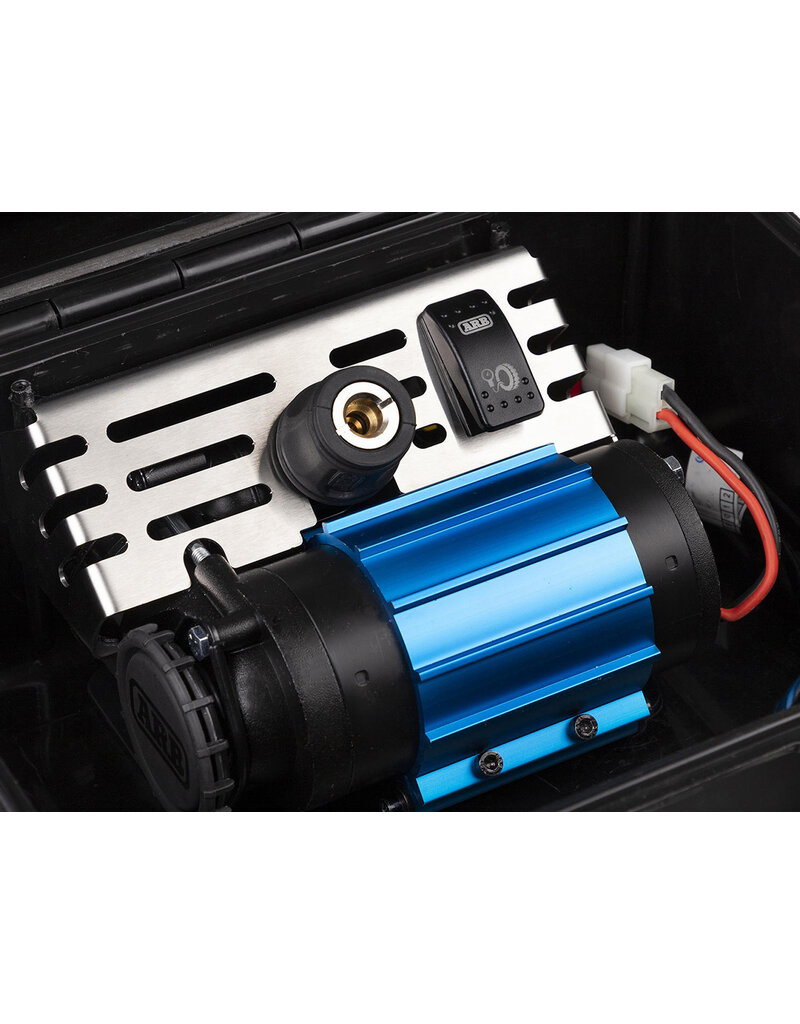

• Brushed stainless steel heat shield to prevent accidental burns
• Enhanced cooling and safety:
– Hard-anodized cylinder
– Teflon-impregnated carbon fiber piston seal
– Overpressure safety valve
– Thermal protection
– Built-in pressure switch
– Air filter and dust filter system
Key features:
• Voltage: 12 V DC
• Max current draw: 25.2 A
• Airflow:
– 87.2 L/min (no load)
– 65.9 L/min (at 200 kPa)
• Max pressure: 10 bar / 150 psi
• Duty cycle: 50%
• Dimensions: 35.6 x 30.8 x 18.2 cm
• Weight: 7 kg

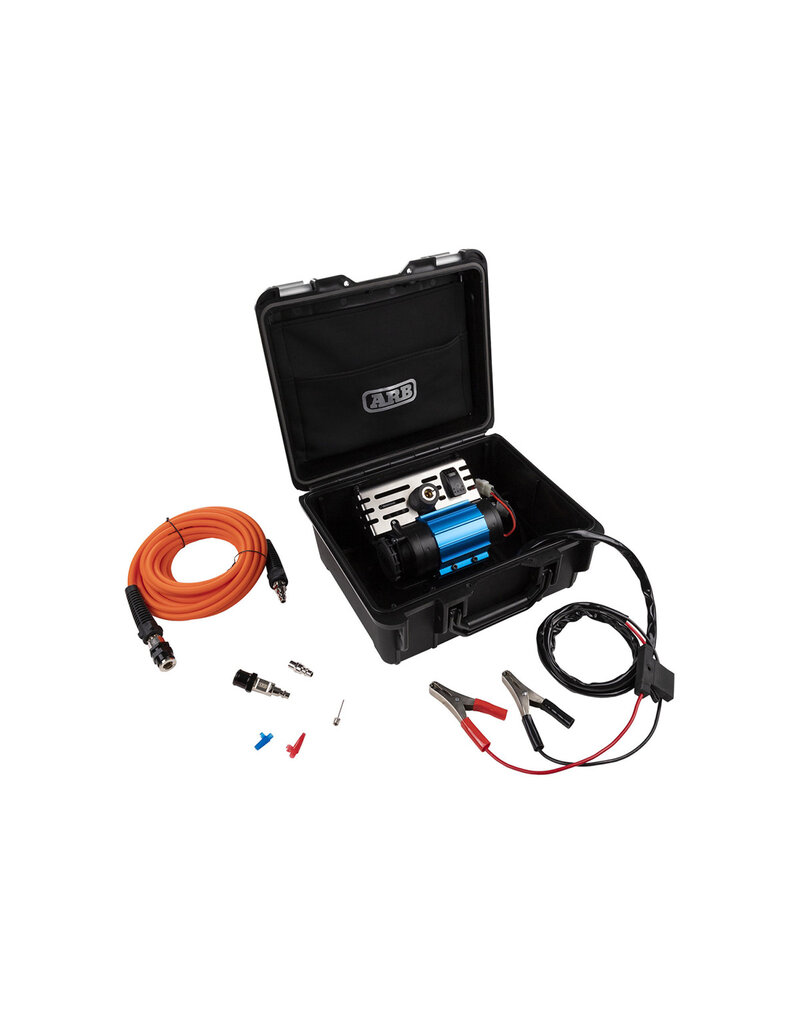

• Included:
– 7 m hose
– Quick-connect fittings
– Bead seating nozzle
– Inflation accessory kit
– Sealed hard case with neoprene compartments
Each unit is assembled and tested in ARB’s factory in Kilsyth, Australia, ensuring unmatched reliability on the trail. Whether you're inflating tires, operating air lockers, or reseating beads, this compact powerhouse is an essential for every off-road adventure.
