| Article number: | 1204 |

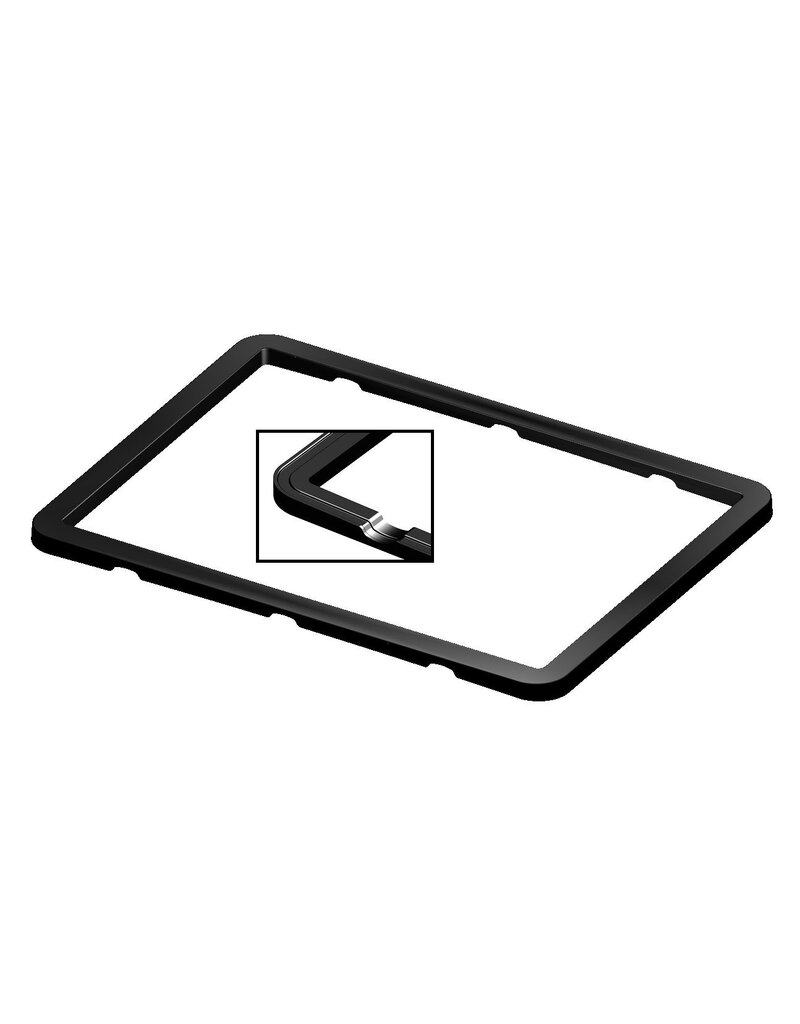

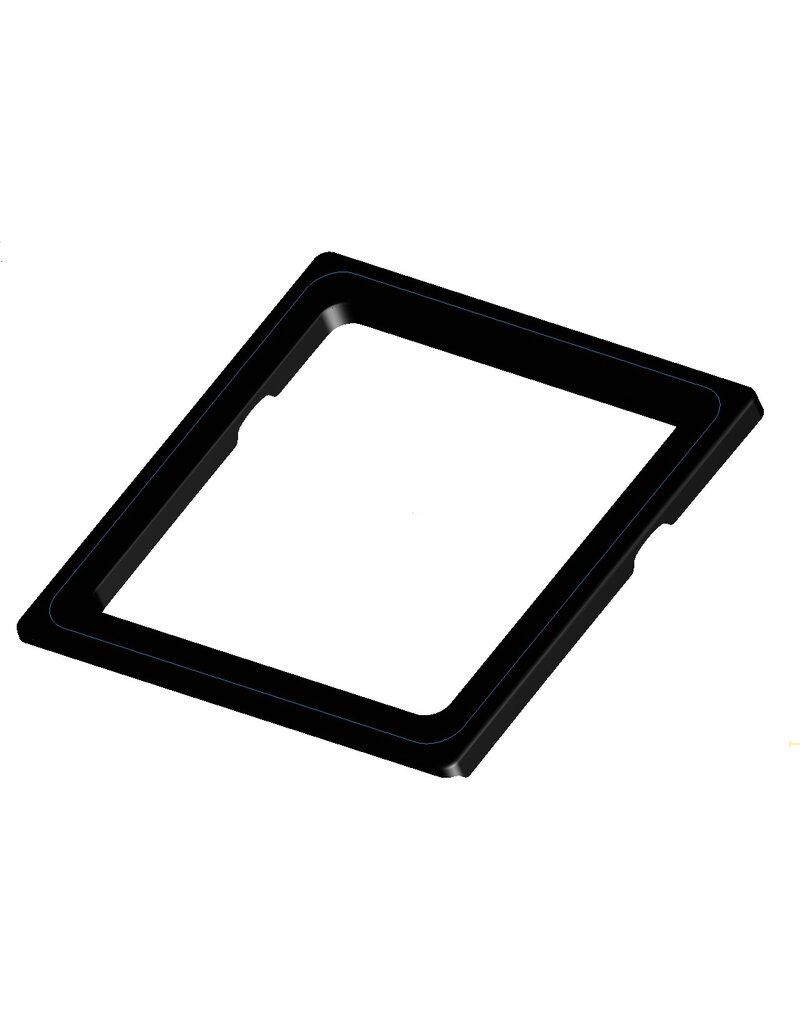

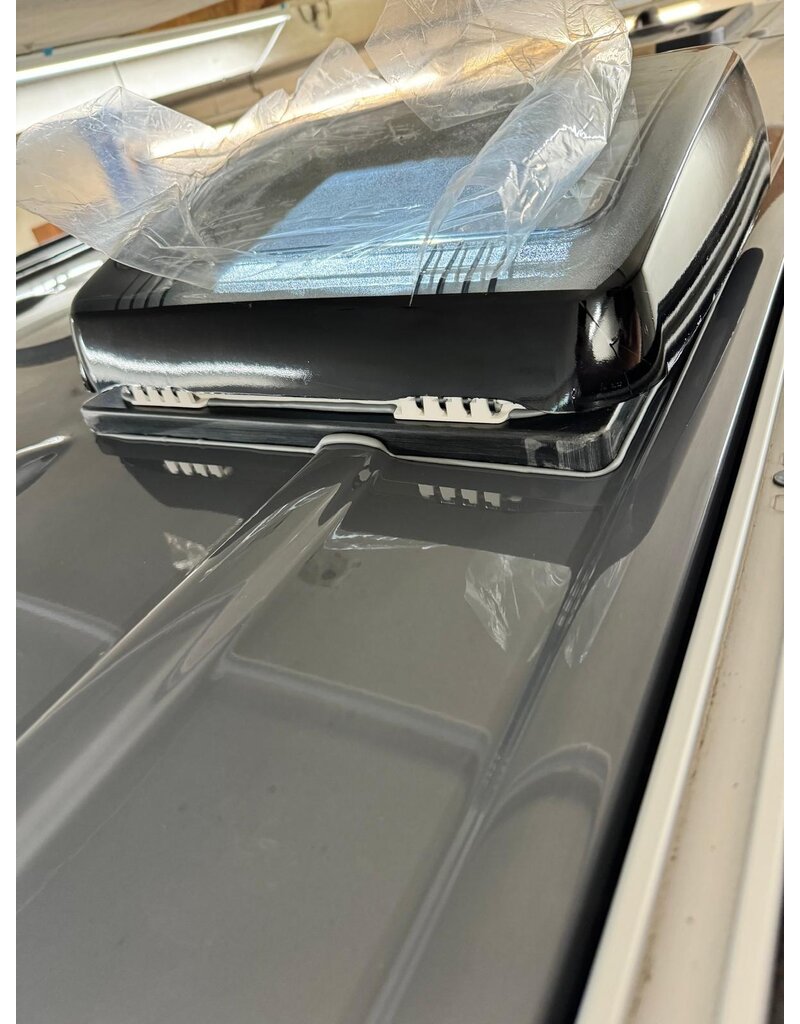

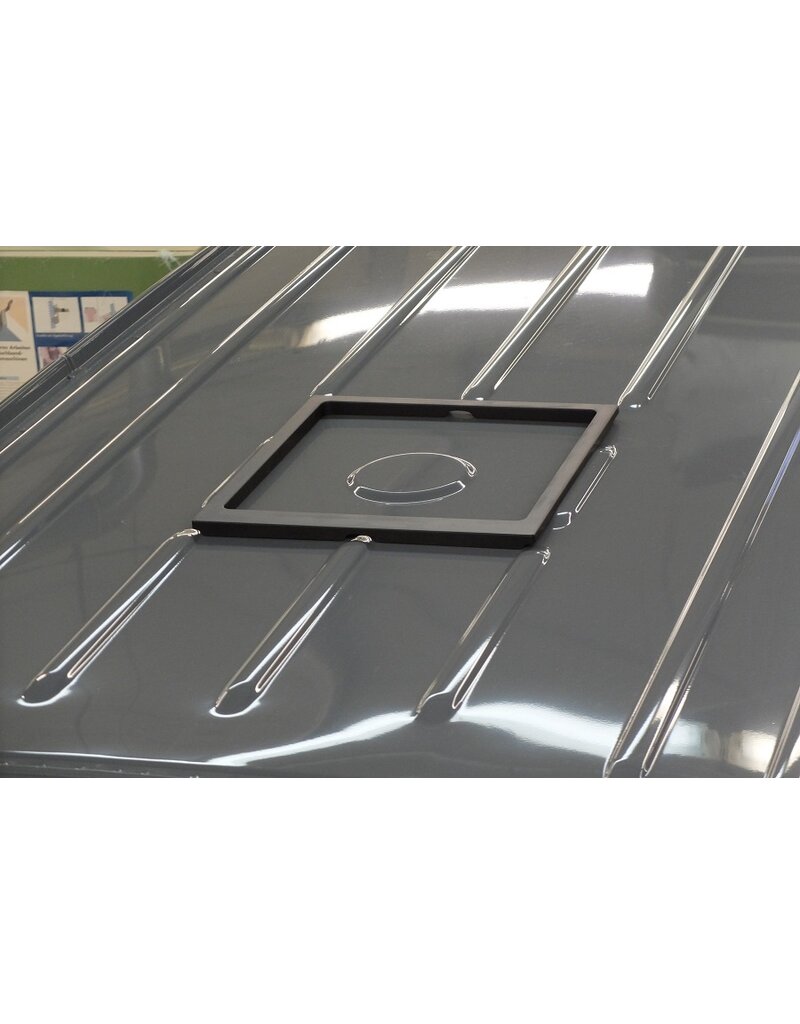

The adapter frame is mounted between the installation frame (e.g., from Dometic MIDI-HEKI/Style, Remis, etc.) and the roof panel. The frame compensates for the roof struts and the convex roof panel. This creates a horizontal and straight installation situation for mounting the roof hood.
This lays the foundation for tension-free and therefore permanently sealed roof hood installation.
Select the correct variant!
Special features of the variants:

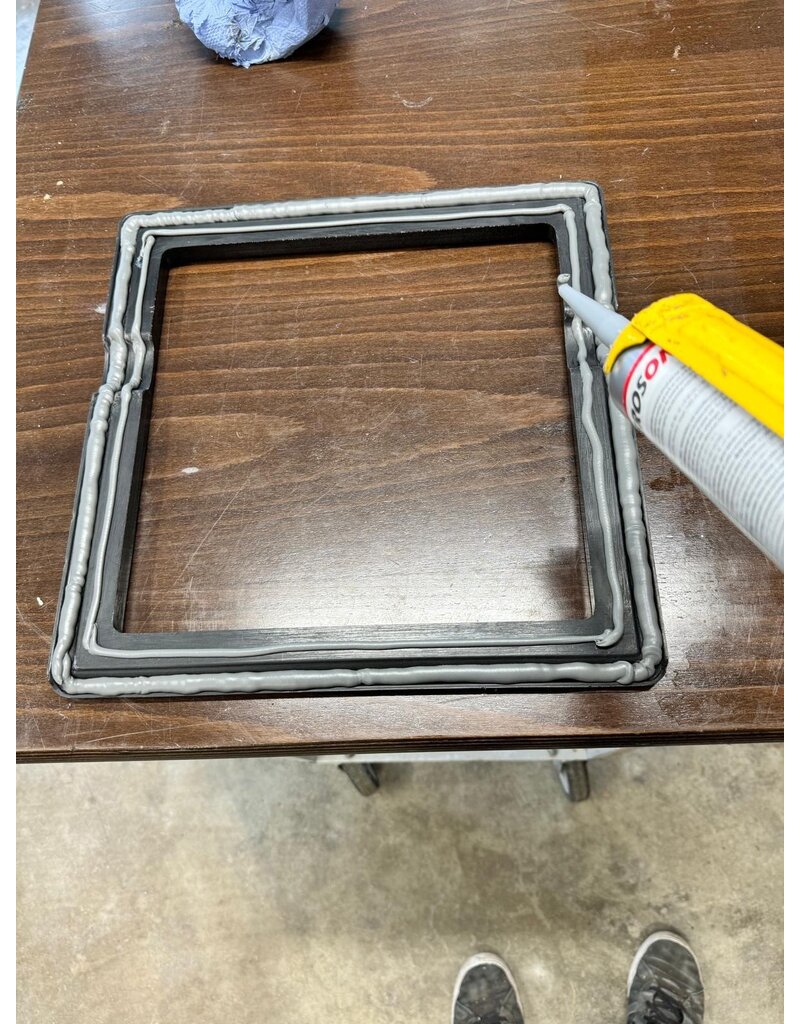

1292: PU adapter frame for roof hood installation. Crafter (2006–2016), Sprinter 906/907/910. Roof cutout of 700x500 (e.g., MIDI-HEKI) Black, dimensionally stable, one-piece PU cast frame with surrounding butyl reservoir. Installation position variable in the longitudinal direction of the roof.
1295: MINI-HEKI Sprinter 906/907/910 Roof cutout of 400x400 (MINI-HEKI) Black, dimensionally stable, one-piece PU cast frame with surrounding butyl reservoir. Installation position variable in the longitudinal direction of the roof.
1296: Universal PU adapter frame for roof hood or roof vent installation. Crafter (2006–2016), Sprinter 906/907/910. Roof cutout of 400x400 (e.g., Carbest, Fiamma, Maxvan, etc.). Black, dimensionally stable, one-piece PU cast frame with surrounding butyl reservoir. Installation position variable in the longitudinal direction of the roof.
1297: Adapter frame (280 x 280 mm) for roof hood on a Sprinter 906/907/910. Frame with unique butyl rubber reservoir for roof hood (wet room area)
1204: PU adapter frame for MIDI-HEKI and MIDI-HEKI Style Ducato/Jumper/Boxer X250/X290 roof hood installation with a roof cutout of 700x500 (e.g., MIDI-HEKI)
Black, dimensionally stable, one-piece PU cast frame reinforced with perforated sheet metal and surrounding butyl reservoir. PU adapter frame at front. Fixed installation position. For initial installation only!
1210: PU adapter frame for roof hood installation MIDI-HEKI and MIDI-HEKI Style Ducato/Jumper/Boxer X250/X290 with a roof cutout of 700x500 (e.g., MIDI-HEKI)
Black, dimensionally stable, one-piece PU cast frame reinforced with perforated sheet metal with surrounding butyl reservoir. PU adapter frame rear. Installation position variable in the longitudinal direction of the roof.
